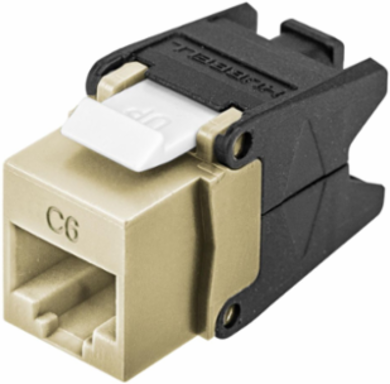

Hubbell Premise Wiring HJU6EI24 Category 6 Jack Modular with Cobra-Lock™ Termination, 0.87 x 0.67 x 1.39 Inch
Hubbell Premise Wiring HJU6EI24 Category 6 Jack Modular with Cobra-Lock™ Termination, 0.87 x 0.67 x 1.39 Inch
- MPN: HJU6EI24
- UPC: 662620669519
- PPN: HBL-HJU6EI24
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$499.85/ EA
Description
NEXTSPEED® Category 6 is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6 performance and headroom beyond 250MHz for 5GBASE-T assurance. NEXTSPEED® Category 6 jacks incorporate Cobra-Lock™ termination which empowers installers to perform fast, repeatable, and reliable terminations.
Features
- Third Party Verified Category 6 Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Specifications
- Contact Point Material
- Copper Alloy with Gold Over Plating
- Dimensions
- 0.87 (22) x 0.67 (?17) x 1.39 (?35)
- Each - Width
- 8.000 in
- Number of Pieces in Package
- 24
- Application
- Up to 5GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Mounting
- Snap-fit
- Special Features
- Cobra-Lock™ Termination
- Sub Brand
- Cobra-Lock
- Type
- Modular Jack with Cobra-Lock
- Connectivity
- RJ45 Jack to Cobra-Lock
- Display Size
- Standard Sized Product
- Operating Cycles
- 750+ Plug & 25 Re-Termination Cycles
- Class Code
- A60
- Harmonization Code
- 8536698000
- Sub Class Code
- A60A540
- Series
- Cobra-Lock™ Series
- BOX SIZE
- 8.300x15.100x10.000 (in)
- Carton - Number of Sub Packs
- 15
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620669519
- Case Weight
- 7.450 lb.
Country of OriginTW
Width8.000 in
Industry Standard(s)ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 6 Component, Third Party Verified
ColorIvory
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Size0.87 (22) x 0.67 (?17) x 1.39 (?35)
StandardANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
Construction Material - MainThermoplastic
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasurePK
Carton - Gross Weight per Pack16.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units15
Certifications
- EU RoHS Indicator
- Yes
