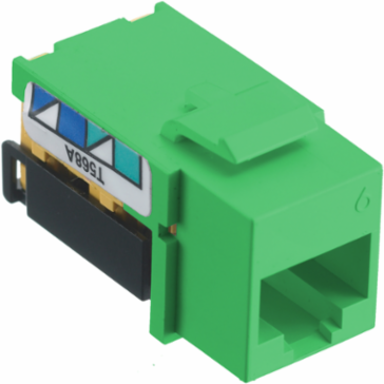

Hubbell Premise Wiring NSJ6GN24 Category 6 netSELECT™ Jack, 0.86 x 0.67 x 1.29 Inch, Snap-fit Mounting
Hubbell Premise Wiring NSJ6GN24 Category 6 netSELECT™ Jack, 0.86 x 0.67 x 1.29 Inch, Snap-fit Mounting
- MPN: NSJ6GN24
- UPC: 883778507052
- PPN: HBL-NSJ6GN24
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$551.89/ EA
Description
netSELECT™ Category 6 modular jacks meet all TIA channel parameters and support applications up to 5GBASE-T. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Easy To Terminate Angled Wiring Towers
- Exceeds TIA Category 6 Standards
- Quick-Lace Termination
Specifications
Specifications
- Contact Point Material
- Beryllium Copper with Gold Over Plating
- Width
- 7.750 in
- Industry Standard(s)
- ANSI/TIA/EIA-568 Category 6;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Performance
- TIA Cat 6 Component
- Application
- Up to 5GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 6;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Description - Invoice
- JACK, NSJ,CAT6,8 POS,UNI,A/B,GN,24PK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A82A880
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- PK
- Carton - Gross Weight per Pack
- 1.360 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4 EA
- Case Weight
- 13.150 lb.
- Each - Pack Description
- Pack
- Package Quantity
- 1 EA
- Pallet Height
- 36.600 in
- Pallet Weight
- 157.800 lb.
Country of OriginPR
Each - Width7.750 in
Number of Pieces in Package24
Size0.86 (22) x 0.67 (?17) x 1.29 (?33)
ColorGray
Contact ResistancePer TIA
Insertion LossPer TIA
Special FeaturesQuick-Lace Termination
Sub BrandnetSELECT™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles750+ Plug
Class CodeA82
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberNSJ6GN25
Material - Mounting HardwareScrew Mounting
SeriesnetSELECT™ Series
BOX SIZE7.100x11.100x9.000 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00883778507052
Case - Total Units20 EA
Each - Number of Sub Packs1
Package - Total Units1 EA
Pallet - GTIN - Package70883778507051
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
