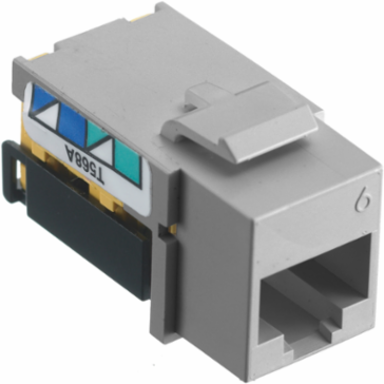

Bryant NSJ6GY netSELECT™ Modular Jack, Category 6, 5GBASE-T, Quick-Lace Termination, Gray
- MPN: NSJ6GY
- UPC: 883778500213
- PPN: HBL-NSJ6GY
- UNSPSC: 39121444
CAD
$12.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
netSELECT™ Category 6 modular jacks meet all TIA channel parameters and support applications up to 5GBASE-T. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Easy To Terminate Angled Wiring Towers
- Exceeds TIA Category 6 Standards
- Quick-Lace Termination
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 3.400 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Application
- Up to 5GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 6;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- HPWALL2
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.7 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 9.300 lb.
- Lowest Level UOM
- Each
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 6;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 6 Component
Standards - RoHS Compliance StatusCM
ColorGray
Contact ResistancePer TIA
Insertion LossPer TIA
Special FeaturesQuick-Lace Termination
Sub BrandnetSELECT™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles750+ Plug
Description - InvoiceJACK, NSJ,CAT6,8 POS,UNI,A/B,GY
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesnetSELECT™ Series
BOX SIZE4.400x6.300x5.500 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack883778500213
Case - Total Units300 EA
Each - Pack DescriptionEach
Certifications
