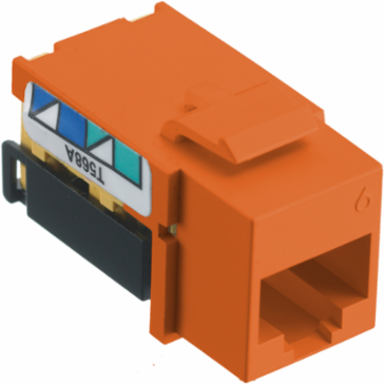

Bryant NSJ6OR netSELECT™ Category 6 Modular Jack, 0.86x0.67x1.29 Inch, Indoor Use, Quick-Lace Termination
Bryant NSJ6OR netSELECT™ Category 6 Modular Jack, 0.86x0.67x1.29 Inch, Indoor Use, Quick-Lace Termination
- MPN: NSJ6OR
- UPC: 883778500220
- PPN: HBL-NSJ6OR
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$11.58/ EA
Description
netSELECT™ Category 6 modular jacks meet all TIA channel parameters and support applications up to 5GBASE-T. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Easy To Terminate Angled Wiring Towers
- Exceeds TIA Category 6 Standards
- Quick-Lace Termination
Specifications
Specifications
- Contact Point Material
- Beryllium Copper with Gold Over Plating
- Width
- 1.600 in
- Industry Standard(s)
- ANSI/TIA/EIA-568 Category 6;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Performance
- TIA Cat 6 Component
- Application
- Up to 5GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 6;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HXJSC6OR
- Material - Mounting Hardware
- Screw Mounting
- Series
- netSELECT™ Series
- BOX SIZE
- 4.400x6.400x5.500 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778500220
- Case - Total Units
- 300 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70883778500229
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginPR
Each - Width1.600 in
Number of Pieces in Package1
Size0.86 (22) x 0.67 (?17) x 1.29 (?33)
ColorOrange
Contact ResistancePer TIA
Insertion LossPer TIA
Special FeaturesQuick-Lace Termination
Sub BrandnetSELECT™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles750+ Plug
Description - InvoiceJACK, NSJ,CAT6,8 POS,UNI,A/B,OR
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeHPWALL2
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Case Weight15.100 lb.
Lowest Level UOMEach
Pallet Height39.200 in
Pallet Weight483.200 lb.
Certifications
- EU RoHS Indicator
- Yes
