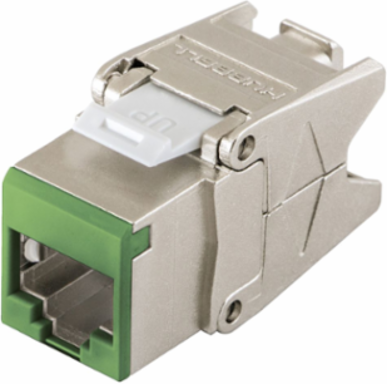

Hubbell Premise Wiring HJS6GN Category 6 Shielded Jack, Cobra-LockTM Termination, 0.87 x 0.67 x 1.39 Inch
- MPN: HJS6GN
- UPC: 662620662091
- PPN: HBL-HJS6GN
- UNSPSC: 39121444
CAD
$22.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NEXTSPEED® Shielded Category 6 is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 250MHz for 5GBASE-T assurance. NEXTSPEED® shielded provides the highest level of reliability in the industry with added protection against external noise and EMI.
Features
- Third Party Verified Category 6 Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Additional
| Operating Cycles | 750+ Plug & 25 Re-Termination Cycles |
|---|---|
| Application | Up to 5GBASE-T, 802.3bt POE |
| Performance | TIA Category 6 Component, Third Party Verified, TIA Component Compliant |
| Plug Mating Cycles | 750 Minimum |
| Temperature Rating | -40 C to 75 C Continuous |
| Dimensions | 0.87 x 0.67 x 1.39 in. |
| Plug Compatibility | RJ-11 to RJ-45 |
| Housing Material | Diecast Zinc (Nose and Rear Housing) |
| Shielding | Shielded |
| Compliance | ANSI/TIA/EIA-568 Category 6, UL 1863, UL 2043, RoHS Compliant |
| Color | Green |
| Series | Cobra-LockTM Series |
| Withstand Voltage | 1,000 Vac @ 60 Hz |
|---|---|
| Category | Category 6 |
| PoE Support | Qualified to 150% of 802.3bt, Tested IEC60512-99-002 |
| IDC Re-termination Cycles | 25 Maximum |
| Mounting Type | Snap-fit |
| Size | 0.87 (22) x 0.67 (17) x 1.39 (35) mm |
| Contact Material | Copper Alloy with Gold Over Plating (Nose Contacts), Phosphor Bronze with 100 in Tin Over Plating (IDC Contacts) |
| Material | Diecast Zinc (Housing), Copper Alloy (Contacts) |
| Termination Type | Cobra-Lock |
| EU RoHS Indicator | Yes |
| Country of Origin | Taiwan |
