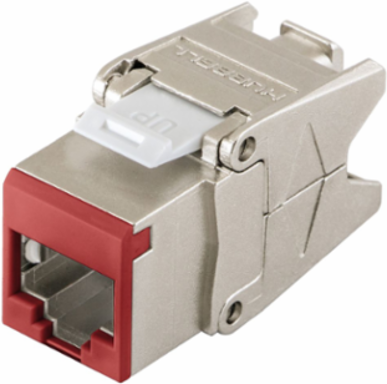

Hubbell Premise Wiring HJS6R Category 6 Shielded Jack with Cobra-Lock™ Termination, 0.87x0.67x1.39 Inch
Hubbell Premise Wiring HJS6R Category 6 Shielded Jack with Cobra-Lock™ Termination, 0.87x0.67x1.39 Inch
- MPN: HJS6R
- UPC: 662620662121
- PPN: HBL-HJS6R
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$21.12/ EA
Description
NEXTSPEED® Shielded Category 6 is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 250MHz for 5GBASE-T assurance. NEXTSPEED® shielded provides the highest level of reliability in the industry with added protection against external noise and EMI.
Features
- Third Party Verified Category 6 Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Specifications
- Country of Origin
- Taiwan
- Dimensions
- 0.87 (22) x 0.67 (17) x 1.39 (35)
- Industry Standard(s)
- ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Performance
- TIA Cat 6 Component, Third Party Verified
- Color
- Red
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Size
- 0.87 (22) x 0.67 (17) x 1.39 (35)
- Standard
- ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Diecast Zinc
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Housing
- Diecast Zinc
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 24
Contact Point MaterialCopper Alloy with Gold Over Plating
Width3.500 in
Number of Pieces in Package1
ApplicationUp to 5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
MountingSnap-fit
Special FeaturesCobra-Lock™ Termination
Sub BrandCobra-Lock
TypeModular Jack with Cobra-Lock
ConnectivityRJ45 Jack to Cobra-Lock
Display SizeStandard Sized Product
Operating Cycles750+ Plug & 25 Re-Termination Cycles
Class CodeA60
Harmonization Code8536698000
Sub Class CodeA60A540
SeriesCobra-Lock™ Series
BOX SIZE4.300x9.800x4.900 (in)
Carton - Number of Sub Packs24
Carton - SCC-14 Next Lower Level Sub Pack00662620662121
Case Weight11.300 lb.
Certifications
- EU RoHS Indicator
- Yes
