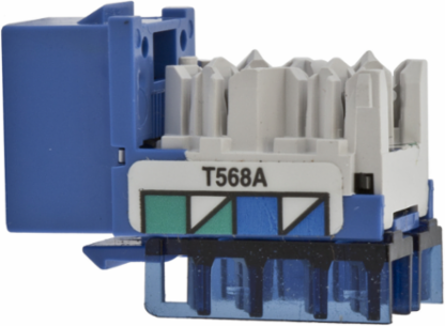

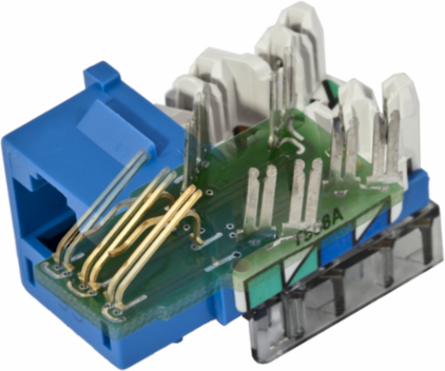

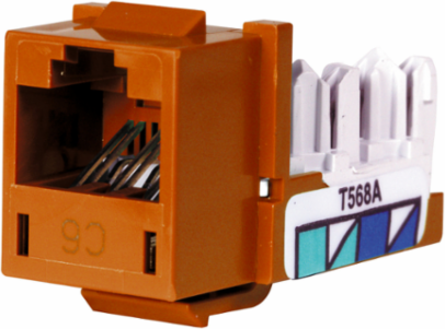

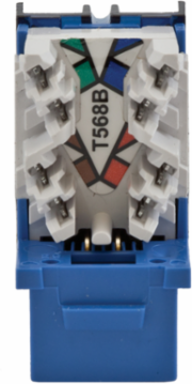

Hubbell Premise Wiring HXJ6OR24 XCELERATOR Cat 6 Modular Jack, 0.86 x 0.67 x 1.29 Inch, Quick-Lace Termination
- MPN: HXJ6OR24
- UPC: 662620663852
- PPN: HBL-HXJ6OR24
- UNSPSC: 39121444
CAD
$331.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Telephone/Data, Jack, XCELERATOR, Cat 6
Features
- Third Party Verified Category 6 Component Compliant
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Width | 7.300 in |
| Number of Pieces in Package | 24 |
| Size | 0.86 (22) x 0.67 ( 17) x 1.29 ( 33) |
| Color | Orange |
| Contact Resistance | 100 Ohm |
| Mounting | Snap-fit |
| Standard | ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant |
| Temperature Rating | Max Continuous- 75° C, Minimum- -40° C Without Impact |
| Withstand Voltage | 1,000 Vac @ 60 Hz |
| General Literature Asset 2 Display Text | NEXTSPEED Link 6 Cable |
| Construction Material - Main | Thermoplastic |
| Mounting Type | Snap-fit |
| Style | RJ-45 Jack |
| Description - Invoice | JACK, HXJ,CAT6,8POS,UNI A/B,OR,24PK |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Sub Class Code | A60A540 |
| Material - Housing | High-impact thermoplastic (UL 94V-0) |
| Base Unit of Measure | PK |
| Carton - Gross Weight per Pack | 13.05 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 20 EA |
| Case Weight | 30.907 lb. |
| Each - Pack Description | Pack |
| Package - Total Units | 1 EA |
| Pallet - GTIN - Package | 70662620663851 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Contact Point Material | Beryllium Copper with Gold Over Plating |
|---|---|
| Industry Standard(s) | ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant |
| Performance | TIA Cat 6 Component, Third Party Verified |
| Application | Up to 5GBASE-T, 802.3bt POE |
| Contact | IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Special Features | Quick-Lace Termination |
| Sub Brand | XCELERATOR™ |
| Type | Modular Jack |
| General Literature Asset 1 Display Text | HDPJ High Density Jack Panels |
| Connectivity | RJ45 Jack to IDC Punch Down |
| Display Size | Standard Sized Product |
| Operating Cycles | 2000 Plug |
| Class Code | A60 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | HXJ6OR25 |
| Material - Mounting Hardware | Keystone |
| Series | XCELERATOR™ Series |
| BOX SIZE | 7.200x11.000x9.100 (in) |
| Carton - Number of Sub Packs | 4 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620663852 |
| Case - Total Units | 25 EA |
| Each - Number of Sub Packs | 1 |
| Lowest Level UOM | Each |
| Package Quantity | 1 EA |
| Pallet Height | 36.600 in |
| Pallet Weight | 152.400 lb. |
| NAICS Code | 3342107206 |
