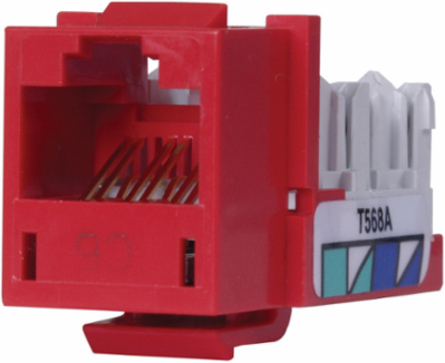

Bryant HXJ6R XCELERATOR™ Category 6 Modular Jack, Quick-Lace Termination, 2.950 Inch Width, Red
- MPN: HXJ6R
- UPC: 662620825441
- PPN: HBL-HXJ6R
- UNSPSC: 39121444
CAD
$16.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
XCELERATOR™ Category 6 modular jacks exceed all TIA component level parameters to provide 5GBASE-T application assurance. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Third Party Verified Category 6 Component Compliant
- Quick-Lace Towers Accelerate Termination
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 2.950 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Color
- Red
- Contact Resistance
- 100 Ohm
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- Construction Material - Main
- Thermoplastic
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- FM637
- Material - Mounting Hardware
- Keystone
- Series
- XCELERATOR™ Series
- BOX SIZE
- 4.500x6.300x5.500 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 662620825441
- Case - Total Units
- 650 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70662620825440
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 6 Component, Third Party Verified
ApplicationUp to 5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesQuick-Lace Termination
Sub BrandXCELERATOR™
TypeModular Jack
ConnectivityRJ45 Jack to IDC Punch Down
Display SizeStandard Sized Product
Operating Cycles2000 Plug
Description - InvoiceJACK, HXJ,CAT6,8POS,UNI A/B,RD
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeHPWALL2
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Case Weight18.800 lb.
Lowest Level UOMEach
Pallet Height36.600 in
Pallet Weight225.600 lb.
Certifications
- EU RoHS Indicator
- Yes
