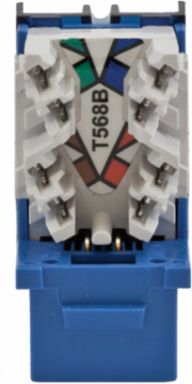

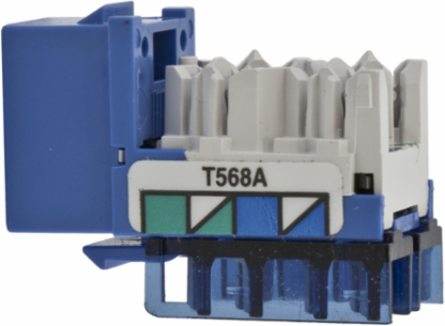

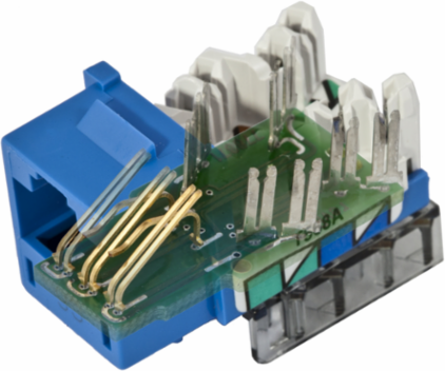

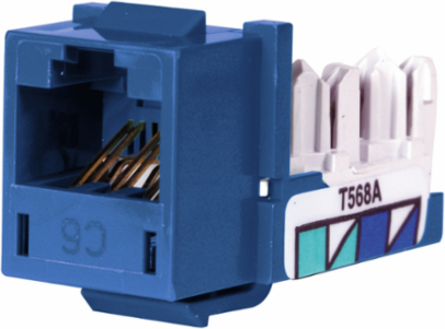

Hubbell Premise Wiring HXJ6B24 XCELERATOR™ Category 6 Modular Jack, Quick-Lace Termination, Size 0.86 x 0.67 x 1.29 Inch
- MPN: HXJ6B24
- UPC: 662620663784
- PPN: HBL-HXJ6B24
- UNSPSC: 39121444
CAD
$313.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCELERATOR™ Category 6 modular jacks exceed all TIA component level parameters to provide 5GBASE-T application assurance. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Third Party Verified Category 6 Component Compliant
- Quick-Lace Towers Accelerate Termination
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Additional
- Performance
- TIA Category 6 Component, Third Party Verified; Positive PSACR beyond 300 MHz; 4+ Gbps bandwidth 1-250 MHz; Qualified to 150% 802.3bt PoE Current Level; Withstand Voltage 1000 Vac @ 60 Hz; Contact Resistance 100 Ohm
- Application
- Up to 5GBASE-T, 802.3bt POE
- Mounting Type
- Snap-fit
- Termination Type
- Quick-Lace
- Material
- Housing: High-impact thermoplastic (UL 94V-0); Contact Point: Beryllium Copper with Gold Over Plating; IDC Contact: Phosphor Bronze with 100 micro-inch Tin Lead 60/40 plating over nickel; Stuffer Cap: Lexan (UL 94 V-0); Mounting Hardware: Keystone
- Color
- Blue
- Series
- XCELERATOR™ Series
Operating Cycles2000
Size0.86 x 0.67 x 1.29 in
StyleRJ-45 Jack, Modular Jack
Keystone Latching Force25 lbs
StandardANSI/TIA/EIA-568 Category 6 component; UL 1863; IEC60512-99-002 POE Disconnection Endurance; UL 2043; RoHS Compliant; EU RoHS Indicator: Yes; Buy American Compliant: Yes
Country of OriginUS
