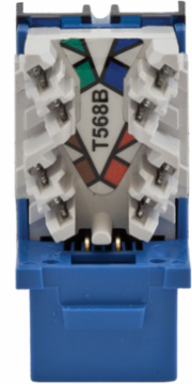

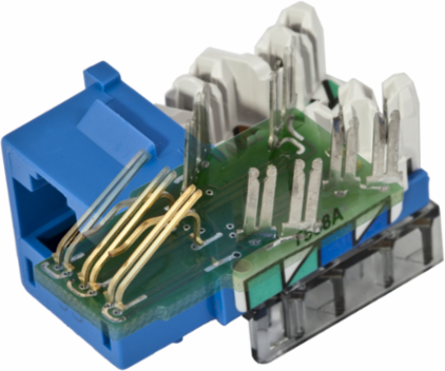

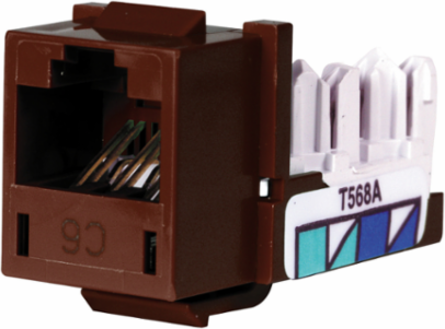

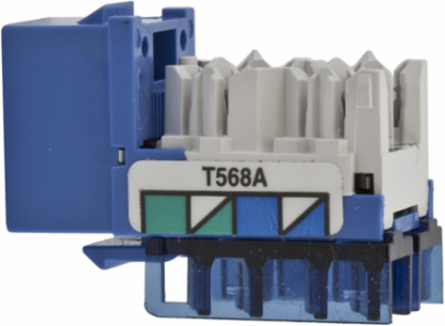

Hubbell Premise Wiring HXJ6BN24 XCELERATOR™ Category 6 Jack, Quick-Lace Termination, Brown, 1.36 lb
- MPN: HXJ6BN24
- UPC: 662620663807
- PPN: HBL-HXJ6BN24
- UNSPSC: 39121444
CAD
$313.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XCELERATOR™ Category 6 modular jacks exceed all TIA component level parameters to provide 5GBASE-T application assurance. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Third Party Verified Category 6 Component Compliant
- Quick-Lace Towers Accelerate Termination
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Additional
- Standards
- ANSI/TIA/EIA-568 Category 6; IEC60512-99-002; IEEE 802.3 Gigabit Ethernet; IEEE 802.3at PoE+; UL 1863; UL 2043; RoHS Compliant; CSA Certified
- Contact Resistance
- 100 Ohm
- Width
- 8 in.
- Mounting Type
- Snap-fit Keystone
- Contact Point Material
- Beryllium copper with gold over plating and nickel under-plating
- Color
- Brown
- Keystone Latching Force
- 25 lbs
- Connectivity
- RJ45 Jack to IDC Punch Down
- Country of Origin
- US
Electrical Current Rating850mA per conductor (1.7A per pair)
Temperature Range-40° C to 75° C continuous
Size0.86 in x 0.67 in x 1.29 in
Material - HousingHigh-impact thermoplastic (UL 94 V-0)
IDC Contact MaterialPhosphor bronze with 100 micro-inch tin-lead 60/40 plating over nickel under-plating
Operating Cycles (Mating Cycles)2000 cycles
Backward CompatibilityCategory 5e
ApplicationUp to 5GBASE-T, 10 Gig, 10/100/1000BASE-T, 802.3bt POE
SeriesXCELERATOR™ Series
