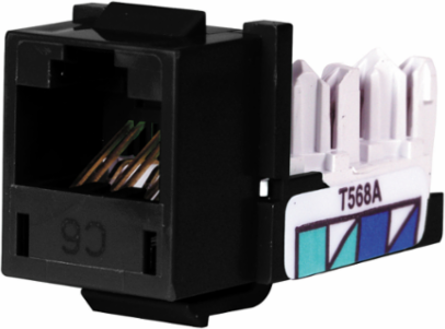

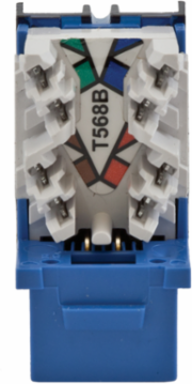

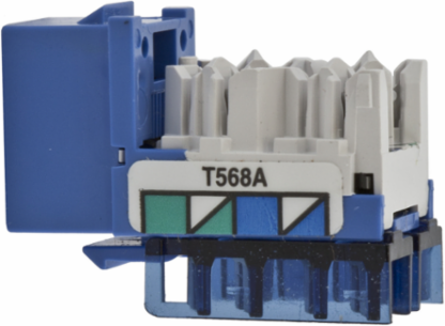

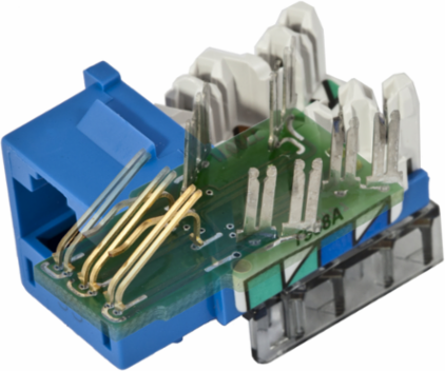

Hubbell Premise Wiring HXJ6BK24 XCELERATOR™ Category 6 Modular Jack, 0.86 Inch x 0.67 Inch x 1.29 Inch, Quick-Lace Termination

XCELERATOR™ Category 6 Modular Jack, 0.86 Inch x 0.67 Inch x 1.29 Inch, Quick-Lace Termination
XCELERATOR™ Category 6 Modular Jack, 0.86 Inch x 0.67 Inch x 1.29 Inch, Quick-Lace Termination
XCELERATOR™ Category 6 Modular Jack, 0.86 Inch x 0.67 Inch x 1.29 Inch, Quick-Lace Termination
XCELERATOR™ Category 6 Modular Jack, 0.86 Inch x 0.67 Inch x 1.29 Inch, Quick-Lace Termination
  • MPN: HXJ6BK24
  • UPC: 662620663791
  • PPN: HBL-HXJ6BK24
  • UNSPSC: 39121444

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$295.34/ EA

Description

XCELERATOR™ Category 6 modular jacks exceed all TIA component level parameters to provide 5GBASE-T application assurance. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.

Features

  • Third Party Verified Category 6 Component Compliant
  • Quick-Lace Towers Accelerate Termination
  • Mating Cycles Exceed Industry Standard by Four Times
  • Quick-Lace Termination

Specifications

Category
Category 6
Operating Cycles
2000 plug cycles
Contact Resistance
100 Ohm
Temperature Rating
-40° C to 75° C continuous
Size
0.86 in x 0.67 in x 1.29 in
Termination Type
Quick-Lace
Material - Housing
High-impact thermoplastic (UL 94 V-0)
IDC Contact Material
Phosphor bronze with 100 micro-inch tin lead 60/40 plating over nickel
Keystone Latching Force
25 lbs
EU RoHS Indicator
Yes
Color
Black
PerformanceTIA Cat 6 Component, Third Party Verified;Center balanced to Category 6 plug specs; Positive PSACR beyond 300 MHz; 4+ Gbps capacity 1-250 MHz; Qualified to 150% of 802.3bt PoE current; TIA Cat 6, Up to 5GBASE-T, 802.3bt POE
Contact Point MaterialBeryllium Copper with Gold Over Plating
Withstand Voltage1,000 Vac @ 60 Hz
Dimensions0.86 in x 0.67 in x 1.29 in
Mounting TypeSnap-fit
ConnectivityRJ45 Jack to IDC Punch Down
Nose Contact MaterialBeryllium copper with precious metal plating over nickel
Stuffer Cap MaterialLexan (UL 94 V-0)
StandardsANSI/TIA/EIA-568 Category 6; UL 1863; IEC60512-99-002 PoE Disconnection Endurance; UL 2043; CSA Certified; RoHS Compliant
Country of OriginUS
