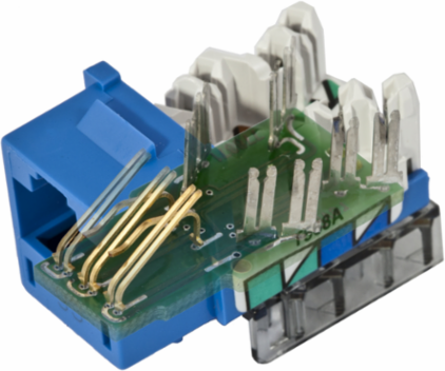

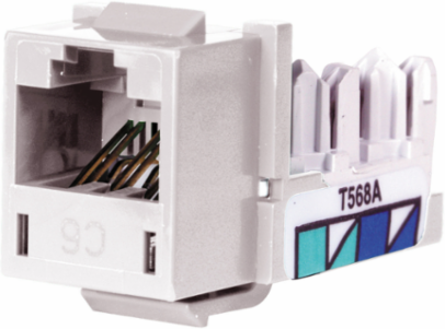

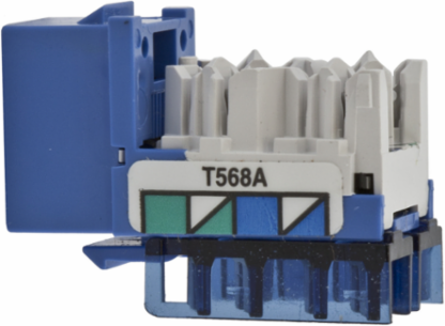

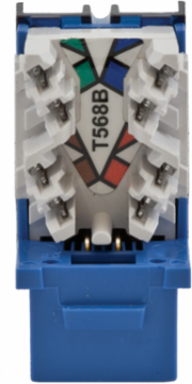

Hubbell Premise Wiring HXJ6W24 XCELERATOR Cat 6 Telephone/Data Jack, 7.320 Inch, Modular Jack, Quick-Lace Termination

MPN: HXJ6W24
UPC: 662620663906
PPN: HBL-HXJ6W24
UNSPSC: 39121444

$331.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Telephone/Data, Jack, XCELERATOR, Cat 6

Features

Third Party Verified Category 6 Component Compliant
Exclusive 1-Punch Termination Reduces Termination Time by 75%
Mating Cycles Exceed Industry Standard by Four Times
Quick-Lace Termination

Specifications

Additional

Category	6
Voltage Rating	1,000 Vac @ 60 Hz
Mating Cycles	2000
Dimensions	0.86 (22) x 0.67 (17) x 1.29 (33) in.
Width	7.320 in
Material	High-impact thermoplastic (UL 94V-0) housing; Thermoplastic main construction; Keystone mounting hardware
Stuffer Cap Material	Lexan (UL 94 V-0)
IDC Contact Termination Cycles	10x
Color	White
Series	XCELERATORTM Series

Performance	TIA Category 6, Third Party Verified; Positive PSACR beyond 300 MHz; 4+ Gbps within 1-250 MHz bandwidth; Qualified to 150% 802.3bt PoE level
Operating Cycles	2000 Plug
Temperature Rating	-40 C to 75 C Continuous
Length	7.320 in
Mounting Type	Snap-fit Keystone
Contact Material	Nose: Beryllium copper with gold over nickel plating; IDC: Phosphor bronze with 100 micro-inch tin/lead 60/40 over nickel plating
Compliance	ANSI/TIA/EIA-568-C.2; ISO 11801/60603-7-41; UL Listed 1863; CSA Certified; RoHS Compliant; UL 2043; IEC60512-99-002 POE Disconnection Endurance
Keystone Latching Force	25 lbs
Country of Origin	US
