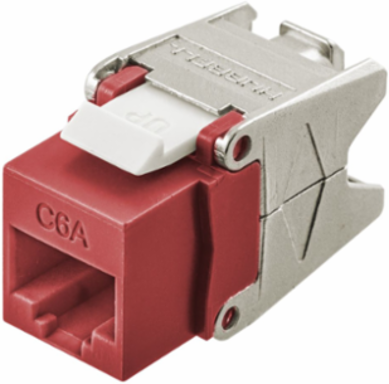

Hubbell Premise Wiring HJU6AR Ascent Category 6A Jack, RJ-45 Modular, Cobra-Lock Termination, 0.87 x 0.67 x 1.39 Inch
- MPN: HJU6AR
- UPC: 662620663531
- PPN: HBL-HJU6AR
- UNSPSC: 39121444
CAD
$25.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Ascent Category 6A is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 500MHz for 10GBASE-T assurance. Ascent 6A jacks incorporate Cobra-Lock™ termination which empowers installers to perform fast, repeatable, and reliable terminations.
Features
- Third Party Verified Category 6A Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Dimensions
- 0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
- Industry Standard(s)
- ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Performance
- TIA Cat 6A Component, Third Party Verified
- Color
- Red
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Size
- 0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
- Standard
- ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Temperature Rating
- Max Continuous- 75° C, Minimum- -40° C Without Impact
- Withstand Voltage
- 1,000 Vac @ 60 Hz
- General Literature Asset 2 Display Text
- Catch the Wi-Fi 6 Wave
- Connectivity
- RJ45 Jack to Cobra-Lock
- Display Size
- Standard Sized Product
- Operating Cycles
- 750+ Plug & 25 Re-Termination Cycles
- Class Code
- A60
- Harmonization Code
- 8536698000
- Sub Class Code
- A60A540
- Series
- Cobra-Lock™ Series
- BOX SIZE
- 4.300x9.800x4.900 (in)
- Carton - Number of Sub Packs
- 24
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620663531
- Case Weight
- 9.750 lb.
- Pallet Height
- 40.400 in
- Pallet Weight
- 429.000 lb.
- NAICS Code
- 3342107206
Contact Point MaterialCopper Alloy with Gold Over Plating
Width3.000 in
Number of Pieces in Package1
ApplicationUp to 10GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
MountingSnap-fit
Special FeaturesCobra-Lock™ Termination
Sub BrandCobra-Lock
TypeModular Jack with Cobra-Lock
General Literature Asset 1 Display TextHDPJ High Density Jack Panels
General Literature Asset 3 Display TextNEXTSPEED Ascent Category 6A Enhanced Performance System
Construction Material - MainThermoplastic and Diecast Zinc
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - HousingHigh-impact thermoplastic (UL 94V-0) and Diecast Zinc
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units24
Pallet - GTIN - Package70662620663530
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
