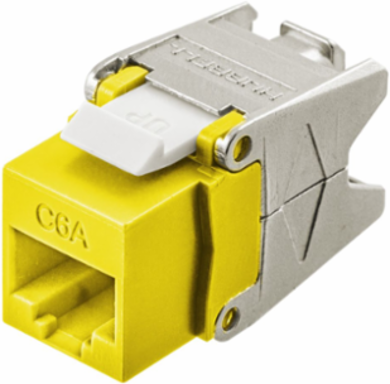

Hubbell Premise Wiring HJU6AY24 Category 6A Jack Modular with Cobra-Lock™ Termination, 0.87 Inch x 0.67 Inch x 1.39 Inch
- MPN: HJU6AY24
- UPC: 662620663586
- PPN: HBL-HJU6AY24
- UNSPSC: 39121444
CAD
$602.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Ascent Category 6A is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 500MHz for 10GBASE-T assurance. Ascent 6A jacks incorporate Cobra-Lock™ termination which empowers installers to perform fast, repeatable, and reliable terminations.
Features
- Third Party Verified Category 6A Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Key Specifications
- Mounting
- Snap-fit
- Standard
- ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- General Literature Asset 2 Display Text
- Catch the Wi-Fi 6 Wave
- Country of Origin
- Taiwan
- Contact Point Material
- Copper Alloy with Gold Over Plating
- Width
- 5.000 in
- Number of Pieces in Package
- 24
- Size
- 0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
- Application
- Up to 10GBASE-T, 802.3bt POE
- Construction Material - Main
- Thermoplastic and Diecast Zinc
- Display Size
- Standard Sized Product
- Mounting Type
- Snap-fit
- Style
- RJ-45 Jack
- Type
- Modular Jack with Cobra-Lock
- Class Code
- A60
- Harmonization Code
- 8536698000
- Replaced Catalog Number
- HJ6AY25
- Material - Housing
- High-impact thermoplastic (UL 94V-0) and Diecast Zinc
- Base Unit of Measure
- PK
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 15
- Pallet - GTIN - Package
- 70662620663585
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Special FeaturesCobra-Lock™ Termination
Sub BrandCobra-Lock
General Literature Asset 3 Display TextNEXTSPEED Ascent Category 6A Enhanced Performance System
ColorYellow
Dimensions0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
Industry Standard(s)ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 6A Component, Third Party Verified
General Literature Asset 1 Display TextHDPJ High Density Jack Panels
ConnectivityRJ45 Jack to Cobra-Lock
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles750+ Plug & 25 Re-Termination Cycles
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA60A540
SeriesCobra-Lock™ Series
BOX SIZE9.700x15.500x10.500 (in)
Carton - Number of Sub Packs15
Carton - SCC-14 Next Lower Level Sub Pack00662620663586
Case Weight16.200 lb.
Pallet Height38.800 in
Pallet Weight712.800 lb.
NAICS Code3342107206
Certifications
- EU RoHS Indicator
- Yes
