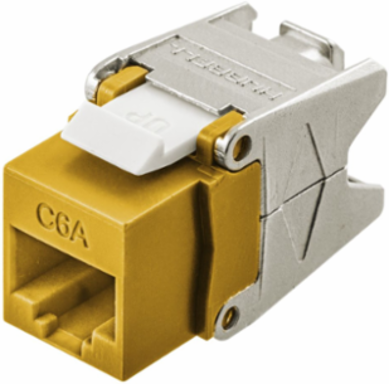

Hubbell Premise Wiring HJU6AGL Category 6A Modular Jack with Cobra-Lock™ Termination, 0.87 Inch x 0.67 Inch x 1.39 Inch
- MPN: HJU6AGL
- UPC: 662620663395
- PPN: HBL-HJU6AGL
- UNSPSC: 39121444
CAD
$25.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Ascent Category 6A is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 500MHz for 10GBASE-T assurance. Ascent 6A jacks incorporate Cobra-Lock™ termination which empowers installers to perform fast, repeatable, and reliable terminations.
Features
- Third Party Verified Category 6A Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Key Specifications
- Country of Origin
- Taiwan
- Dimensions
- 0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
- Number of Pieces in Package
- 1
- Application
- Up to 10GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Mounting
- Snap-fit
- Special Features
- Cobra-Lock™ Termination
- Sub Brand
- Cobra-Lock
- Type
- Modular Jack with Cobra-Lock
- General Literature Asset 1 Display Text
- Catch the Wi-Fi 6 Wave
- Connectivity
- RJ45 Jack to Cobra-Lock
- Display Size
- Standard Sized Product
- Operating Cycles
- 750+ Plug & 25 Re-Termination Cycles
- Class Code
- A60
- Harmonization Code
- 8536698000
- Replaced Catalog Number
- HJ6AGL
- Material - Housing
- High-impact thermoplastic (UL 94V-0) and Diecast Zinc
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 24
- NAICS Code
- 3342107206
Contact Point MaterialCopper Alloy with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 6A Component, Third Party Verified
ColorGold
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Size0.87 (22) x 0.67 ( 17) x 1.39 ( 35)
StandardANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
General Literature Asset 2 Display TextNEXTSPEED Ascent Category 6A Enhanced Performance System
Construction Material - MainThermoplastic and Diecast Zinc
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA60A540
SeriesCobra-Lock™ Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs24
Carton - SCC-14 Next Lower Level Sub Pack00662620663395
Case Weight0.000
Certifications
- EU RoHS Indicator
- Yes
