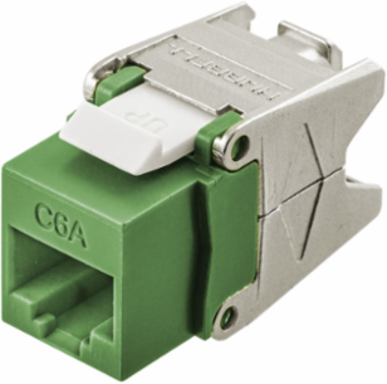

Hubbell Premise Wiring HJU6AGN24 Category 6A Jack Cobra-Lock™ Termination, 0.87 x 0.67 x 1.39 Inch
Hubbell Premise Wiring HJU6AGN24 Category 6A Jack Cobra-Lock™ Termination, 0.87 x 0.67 x 1.39 Inch
- MPN: HJU6AGN24
- UPC: 662620663425
- PPN: HBL-HJU6AGN24
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$568.17/ EA
Description
Ascent Category 6A is a tuned system of structured cabling components designed and balanced to work together to deliver Category 6A performance and headroom beyond 500MHz for 10GBASE-T assurance. Ascent 6A jacks incorporate Cobra-Lock™ termination which empowers installers to perform fast, repeatable, and reliable terminations.
Features
- Third Party Verified Category 6A Component
- Cobra-Lock™ Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Specifications
- Contact Point Material
- Copper Alloy with Gold Over Plating
- Dimensions
- 0.87 (22) x 0.67 (?17) x 1.39 (?35)
- Each - Width
- 5.000 in
- Number of Pieces in Package
- 24
- Application
- Up to 10GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Mounting
- Snap-fit
- Special Features
- Cobra-Lock™ Termination
- Sub Brand
- Cobra-Lock
- Type
- Modular Jack with Cobra-Lock
- Connectivity
- RJ45 Jack to Cobra-Lock
- Display Size
- Standard Sized Product
- Operating Cycles
- 750+ Plug & 25 Re-Termination Cycles
- Class Code
- A60
- Harmonization Code
- 8536698000
- Replaced Catalog Number
- HJ6AGN25
- Material - Housing
- High-impact thermoplastic (UL 94V-0) and Diecast Zinc
- Base Unit of Measure
- PK
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 15
- Pallet - GTIN - Package
- 07662620663428
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginTW
Width5.000 in
Industry Standard(s)ANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 6A Component, Third Party Verified
ColorGreen
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Size0.87 (22) x 0.67 (?17) x 1.39 (?35)
StandardANSI/TIA/EIA-568 Category 6A component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
Construction Material - MainThermoplastic and Diecast Zinc
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA60A540
SeriesCobra-Lock™ Series
BOX SIZE9.300x15.500x10.500 (in)
Carton - Number of Sub Packs15
Carton - SCC-14 Next Lower Level Sub Pack00662620663425
Case Weight9.118 lb.
Pallet Height46.500 in
Pallet Weight891.000 lb.
Certifications
- EU RoHS Indicator
- Yes
