Compact Enclosure 200 x 230 mm, NEMA 4X, Aluminum, Gray
nVent Hoffman

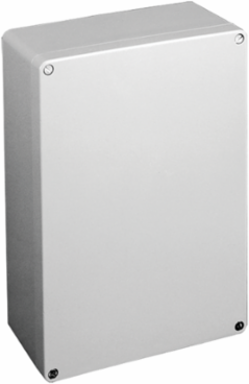

nVent Hoffman CCA202311 Compact Enclosure 200 x 230 mm, NEMA 4X, Aluminum, Gray

  • MPN: CCA202311
  • UPC: 783510666804
  • PPN: HOF-CCA202311
  • UNSPSC: 39121324

CAD

$470.62

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This Compact Series aluminum enclosure is for indoor or outdoor use in corrosive environments. This Compact Series Enclosure Type 4X, CCA202311 item measures 200x230x110mm with a material of Aluminumcolored Gray.

Features

  • Cast Aluminum material
  • No welded seams or sharp corners
  • Stainless steel captivated cover screws placed outside sealed area
  • Two to four grounding screws located on enclosure back wall
  • Oil-resistant, seamless foam-in-place gasket
  • Tongue-and-groove sealing construction
  • Threaded internal bosses provided for mounting optional panels, rails and other components
  • Mounting holes provided in corners outside of gasketed area

Documentation & Downloads

Specifications

Additional

Height (H)
200 mm
Depth (D)
110 mm
Finish
Powder Coated, Traffic Gray
IP Rating
IP66
Mounting (G x H)
7.09 x 7.09 in.
Thickness (T)
2 mm
Gasket
Oil-resistant, seamless foam-in-place
Grounding Screws
Two to four on enclosure back wall
Internal Mounting
Threaded bosses for panels, rails, components
Product Family
Compact
Width (W)230 mm
MaterialAluminum (Cast)
NEMA RatingType 4X Watertight, corrosion-resistant
Protection RatingNEMA Type 12
Weight5.5 lb
Sealing ConstructionTongue-and-groove
Cover ScrewsStainless steel captivated, outside sealed area
Mounting HolesProvided in corners outside gasketed area
Sub BrandCompact
