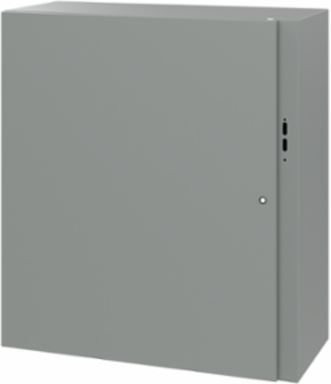

Nvent Hoffman CDSC423816 Concept Disconnect Enclosure Type 4, 42 Inch x 38 Inch x 16 Inch, Steel, Gray, NEMA 12
Nvent Hoffman CDSC423816 Concept Disconnect Enclosure Type 4, 42 Inch x 38 Inch x 16 Inch, Steel, Gray, NEMA 12
- MPN: CDSC423816
- UPC: 783510295523
- PPN: HOF-CDSC423816
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2350.92/ EA
Description
Concept Disconnect Enclosures provide an extra level of visual ON or OFF indication. This Concept Disconnect Enclosure Type 4, CDSC423816 item measures 42.00x38.00x16.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- External-formed 90-degree body flange channels away liquids
- Bonding provision on door; grounding stud on body
- Holes in body for mounting disconnect operating handle and operating mechanism
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting for optional external mounting brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Corner-formed doors
- Provisions on door for optional high-impact thermoplastic data pocket
- Seamless foam-in-place gasket
- Door alignment device on doors wider than 30 inches (762mm)
- Concept-style latching system interlocks with the disconnect handle for added safety
- Unique integrated door handle with tool-to-open feature and padlocking option
- Self-grounding latch system with double seal
- Four hinges on 60-inch-high enclosures
- Simple easy-to-remove and install hinge pins with captivation clip
- High-torque threadless studs and fasteners on door
- V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 965
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.9
- Mounting (G x H)
- 1029 x 927
- Latch Type
- 3-Point
- NEMA Rating
- 12 Indoor, dust-resistant
- Sub Brand
- Concept
- Size
- 42.00x38.00x16.00 in
Height (H)1,067
Depth (D)406
Product FamilyConcept
Color CodeANSI 61
Door Thickness1.9
Latch Quantity1
IP RatingIP66
Weight95
MaterialSteel
ColorGray
