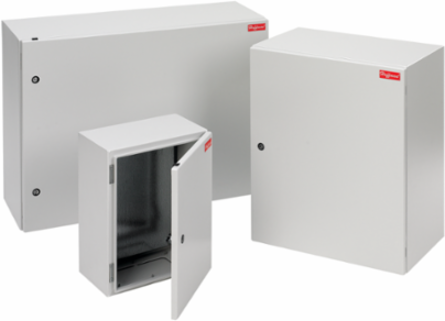

nVent Hoffman G500400225G Fusion G7 Type 4 and 12, 500x400X225, Lt Gray, Steel

Fusion G7 Type 4 and 12, 500x400X225, Lt Gray, Steel
  • MPN: G500400225G
  • UPC: 783510189846
  • PPN: HOF-G500400225G
  • UNSPSC: 39121324

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$822.77/ EA

Description

Fusion G7 enclosures offer metric dimensions, aesthetic styling and a gland plate for customer versatility. This Fusion G7 Type 4 and 12, G500400225G item measures 500x400X225mm with a material of Steel colored Lt Gray.

Features

  • Seamless foam-in-place gasket
  • Reversible door with sealed hinges and hinge brackets
  • Gland plate(s) for enclosure bottom
  • Bonding provision on door; grounding studs (2) on body
  • Full-height galvanized steel back panel included
  • External formed 90-degree body flange channels away liquids
  • Three-point latching on enclosures 1000-mm high and taller
  • Door alignment device on doors with 3-point latching and 800 mm or wider
  • Pre-cut gland plate opening(s) in enclosure bottom
  • Quarter-turn latch(es) with 3-mm double-bit insert
  • Corner-formed door
  • Simple, easy-to-remove and install hinge pins with captivation clip
  • High-torque threadless studs and fasteners on door
  • Wide assortment of user-friendly internal accessories to increase internal mounting area capability and design flexibility
  • Hardware kit includes grounding and sealing hardware
  • Hinged on right side
  • Installation instruction provided

Specifications

Key Specifications

BABA
Contact Manufacturer
Width (W)
400
Protection Rating
NEMA Type 12
Finish
Powder Coated
Color Code
RAL 7035
Door Thickness
1.21
IP Rating
IP66
Sub Brand
Fusion G7
Size
500x400X225mm
Height (H)500
Depth (D)225
Product FamilyFusion G7
ColorLight Gray
Body Thickness1.21
Latch TypeQuarter-Turn
Weight27
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
