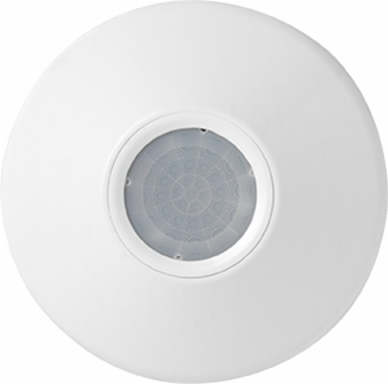

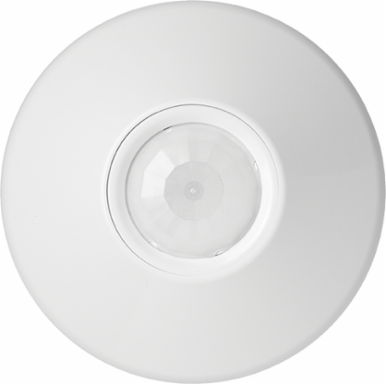

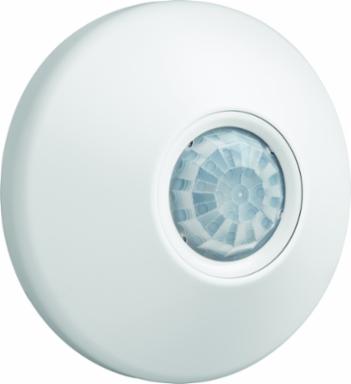

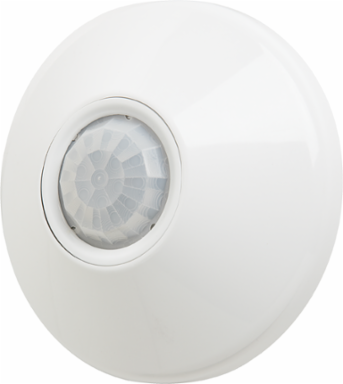

Acuity Brands CMR PDT 9 Ceiling Mount Sensor Passive Dual Technology 360° Lens, 1.5 Inch Height, 4.5 Inch Length
- MPN: CMR PDT 9
- UPC: 745975809448
- PPN: LTH-CMR PDT 9
- UNSPSC: 41111961
CAD
$127.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The CMR is a line voltage sensor that easily mounts directly to a ceiling. Ceiling mount sensors are offered in a multitude of configurations which address many applications. Lens options include large motion extended range, small motion standard range and bi-directional for hallways. These sensors are capable of covering an entire private office or small room by themselves.
Features
- The CMR is a line voltage sensor that easily mounts directly to a ceiling. Ceiling mount sensors are offered in a multitude of configurations which address many applications. Lens options include large motion extended range, small motion standard range and bi-directional for hallways. These sensors are capable of covering an entire private office or small room by themselves.
- APPLICATION: For rooms with obstructions, these sensors offer Passive Dual Technology (PDT), which combines Microphonics noise detection and passive infrared (PIR) motion detection
- ENERGY SAVINGS: Self-contained relay (no power pack needed)
- COMPATIBLE: Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the SensorSwitch Mobile App through camera flash programming
- RATINGS: Energy Management Equipment, UL916 (E167435), RoHS compliant
- COVERAGE: 360 degree coverage
- MOUNTING: 12 ft radial coverage when mounted to standard 9 ft ceiling; 8-15 ft mounting heights provide 10-20 ft radial coverage
- MOTION DETECTION: Best choice for small motion detection
- LAMP: 100-hour lamp burn-in timer mode
- WARRANTY: 5-Year Limited Warranty
Documentation & Downloads
Specifications
Key Specifications
- Product Type
- Sensor
- Standard
- C-UL-US
- Color
- White
- Mounting
- Flush,Surface
- Material
- Plastic
- Finish
- Matte
- Maximum Operating Temperature
- 60
- Lens Material
- Plastic
- Height
- 1.5 in
- Weight
- 0.458 lbs
- Country of Origin
- Mexico
ApplicationAutomotive & Parking,Education,Government,Healthcare,Hospitality,House of Worship,Manufacturing,Offices & Banks,Power & Gas,Residential,Retail,Roadways, Bridges & Tunnels,Sports and Recreation,Transportation,Warehouses
Voltage Rating120,230,277
ShapeRound
Environmental ConditionsIndoor
DimmableYes
Average LifeNot Applicable
Lamp IncludedNot Applicable
Warranty5 Year Limited
Length4.5 in
Width2.5 in
