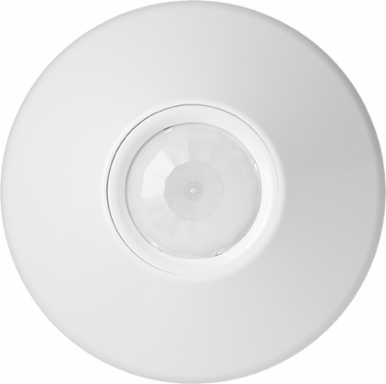

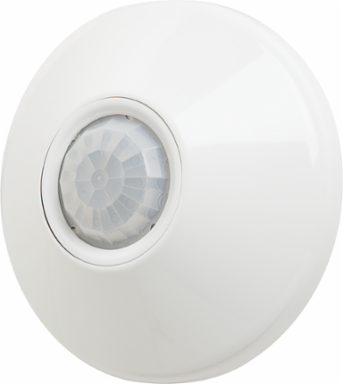

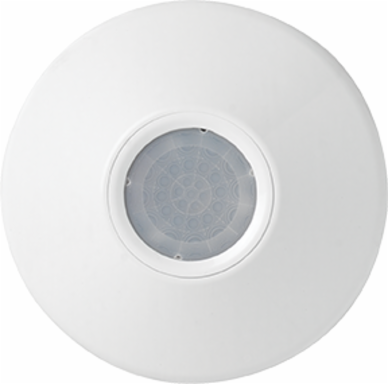

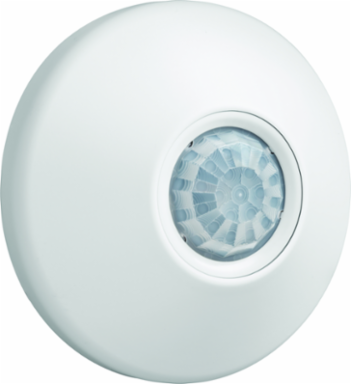

Acuity Brands CMR 9 Ceiling Mount Sensor, 360° Coverage, 4.5 Inch x 2.5 Inch, Dimmable, Indoor
- MPN: CMR 9
- UPC: 745975808281
- PPN: LTH-CMR 9
- UNSPSC: 41111961
CAD
$101.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The SensorSwitch CMR 9 small motion, line voltage ceiling mount occupancy sensor offers a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid. With a variety of lens options, CMR sensors utilize 100% passive Infrared detection and is powered directly from line voltage without the need of a power pack. Programming CMR sensor setting can easily be achieved via push button or optional flash programming via the SensorSwitch VLP Mobile App. With either programing method, the user can change time delay.
Features
- The SensorSwitch CMR 9 small motion, line voltage ceiling mount occupancy sensor offers a low profile design, making it perfect to mount directly to a ceiling tile or metallic grid. With a variety of lens options, CMR sensors utilize 100% passive Infrared detection and is powered directly from line voltage without the need of a power pack. Programming CMR sensor setting can easily be achieved via push button or optional flash programming via the SensorSwitch VLP Mobile App. With either programing method, the user can change time delay.
- DESIGN: Passive Infrared (PIR) occupancy detection
- ENERGRY SAVINGS: Self-contained relay (no power pack needed)
- DIMMING: Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the SensorSwitch VLP Mobile App through camera flash programming
- RATINGS: Energy Management Equipment, UL916 (E167435), RoHS compliant
- MOUNTING: 12 ft radial coverage when mounted to standard 9 ft ceiling; 8-15 ft mounting heights provide 10-20 ft radial coverage
- COVERAGE: 360 degree coverage
- FEATURE: Best choice for small motion detection
- BATTERY: 100-hour lamp burn-in timer mode
- WARRANTY: 5-Year Limited Warranty
Documentation & Downloads
Specifications
Additional
- Voltage
- 120, 220, 230, 277 V
- Coverage
- 360°
- Detection Type
- Passive Infrared (PIR)
- Maximum Operating Temperature
- 60 °C
- Length
- 4.5 in
- Height
- 4.5 in
- Mounting
- Flush, Surface
- Lens Material
- Plastic
- Color
- White
- Standard
- C-UL-US
- Environmental Conditions
- Indoor
- Product Type
- Sensor
Time Delay30 sec to 20 min
Radial Coverage10-20 ft
DimmableYes
Mounting Height8-15 ft
Width2.5 in
Weight0.46 lbs
MaterialPlastic
FinishMatte
ShapeRound
ComplianceUL916, RoHS, CSA Certified
Warranty5 Year Limited
Country of OriginMexico
