Weidmuller 1254110000 CH20M AD SHL 5.00/03 BK 2010
- MPN: 1254110000
- PPN: WDM-1254110000
CAD
$0.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

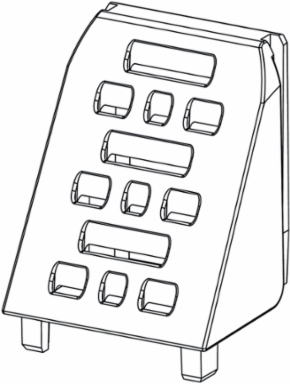

Hood black, Width: 17.5 mm
Documentation & Downloads
Specifications
System Characteristics
- Protection degree
- IP20
Approvals
- ROHS
- Conform

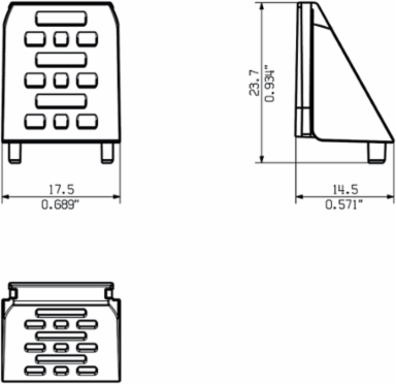

Dimensions And Weights
- Length
- 14.5 mm
- Width
- 17.5 mm
- Height
- 23.7 mm
- Net weight
- 1.44 g
Length (inches)0.571 inch
Width (inches)0.689 inch
Height (inches)0.933 inch
Material Data
- Insulating material
- PA 66 GF 30
- Colour chart (similar)
- RAL 9011
- Comparative Tracking Index (CTI)
- ≥ 550
Colourblack
Insulating material groupII
Max. relative humidity during storage80 %
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC001031
eClass 9.127-18-27-90
