Weidmuller 1493680000 KQN-M3/-0,5
- MPN: 1493680000
- PPN: WDM-1493680000
CAD
$0.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

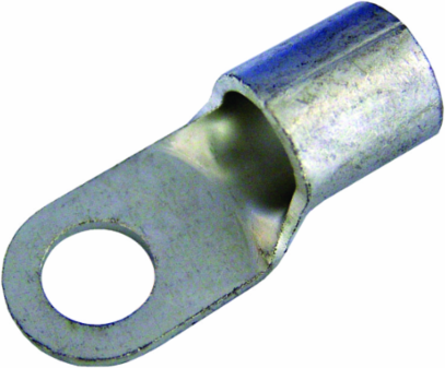

cable lug, terminal end,0.1 mm² - 0.5 mm²
Documentation & Downloads
Specifications
Classifications
- ETIM 6.0
- EC001059
- eClass 9.0
- 27-40-02-12
- eClass 10.0
- 27-40-02-12
ETIM 7.0EC001059
eClass 9.127-40-02-12
Dimensions And Weights
- Weight
- 0.02 g
Net weight0.21 g
Connectors
- Conductor cross-section, max.
- 0.5 mm²
- Connection length (I)
- 10 mm
- Inside diameter of flange (d2)
- 3.2 mm
- Insulation
- not available
- Shaft length (a)
- 4 mm
Conductor cross-section, min.0.1 mm²
HoleM 3
Inside diameter of shaft (d1)1 mm
Outside diameter of shaft (d3)5 mm
Approvals
- ROHS
- Conform
