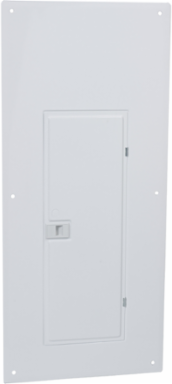

Square D CHOMC21MC Cover, Homeline, for 16 space loadcentre with main breaker, combination flush and surface, white
- MPN: CHOMC21MC
- UPC: 785901846307
- PPN: SCH-CHOMC21MC
CAD
$79.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Homeline loadcentre offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline loadcentres enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline loadcentres are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline loadcentre NEMA 1 indoor combination flush surface cover is for a load center with 16 spaces. The load center cover is finished in white.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, SC |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 1.6868132417, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0201937601, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Load Center Type | main breaker |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Homeline |
| Software Version | EIME v5.9.4 |
| Total Lifecycle Carbon Footprint | 27 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Tlaxcala Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 89 |
| Width Nominal | 15.44 in |
| Package Weight(Lbs) | 4.99 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
| Persona Type Names | End User, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5 kg CO2 eq., 0.466211243 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 25 kg CO2 eq., 24.962467208 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2531 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Energy Efficiency Optimized | False |
| Number Of Spaces | 16 |
| Product Or Component Type | Load Center Cover |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2212003EN |
| Pep Verification Date | 2025-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 22.12 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Customs Code | 8538908160 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 27.2230264528 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212003EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2212003EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Load Center Cover |
|---|
| Range Of Product | Homeline |
|---|
