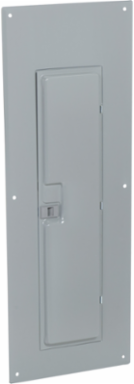

Schneider Electric QOC342UQC QO Load Centre Cover NEMA 1, 42 Spaces, 40.57 Inch Height, Grey
- MPN: QOC342UQC
- UPC: 785901290674
- PPN: SCH-QOC342UQC
CAD
$120.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Load Centers offer premium features like QO breakers, ground arc fault interrupters and surge arresters. QO load centers enable the use of a full complement of accessories. Systems are single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. QO load centers feature plated copper bus, providing superior performance and durability. This combination mounting load center cover is painted gray. This cover is for an indoor load center rated NEMA 1 with 42 spaces. This unit is used with Qwik-grip.
Features
- Engineered with a versatile, dual-purpose profile, this load center cover functions seamlessly as either a surface or flush mount enclosure trim. This combination engineering completely eliminates ordering guesswork and tracking errors for electrical contractors, allowing you to adapt on-the-fly to changing dry-walling depths and structural framing adjustments on the job site.
- Built from heavy-gauge sheet steel and finished with a durable, baked-on grey powder coat, this 40.57-inch (1030.5 mm) trim is designed to withstand decades of daily indoor wear and tear. It forms a precise, dust-resistant barrier over your 42-space Square DTM QO load center interior, keeping dust, lint, and unauthorized fingers out of your main branch circuits.
- Equipped with a heavy-duty, spring-loaded automatic flush latch, the cover door clicks firmly into place with a simple push and stays securely shut against vibrations. This clean-profile mechanical latch prevents the door from accidentally swinging open into high-traffic corridors, ensuring full compliance with local building safety codes while presenting a neat, professional appearance.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 0.01 in |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC |
|---|---|
| Cover Type | combination flush/surface cover, combination flush/surface cover |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.6 kg CO2 eq., 0.6386813741 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 34 kg CO2 eq., 34.1970793254 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2531 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2212003EN |
| Pep Verification Date | 2025-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 40.57 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Customs Code | 8538908160 |
| Persona Type Names | End User, Contractor |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 2.3108327295, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0276642374, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2026-07-14 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Number Of Spaces | 42 |
| Product Or Component Type | Load Center Cover |
| Returnability | Yes |
| Surface Finish | baked enamel Gray |
| Total Lifecycle Carbon Footprint | 37 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Tlaxcala Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 89 |
| Width Nominal | 15.44 in |
| Package Weight(Lbs) | 6.836 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 37.2615986665 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | for indoor load center |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212003EN |
| Nema Degree Of Protection | NEMA 1 indoor |
| Packaging Without Single Use Plastic | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2212003EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Load Center Cover |
|---|
| Range Of Product | QO |
|---|
ETIM
| ETIM 8 | EC000775 |
|---|
| ETIM 9 | EC000775 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
