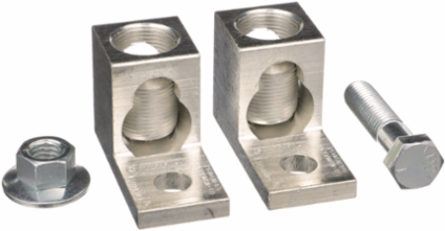

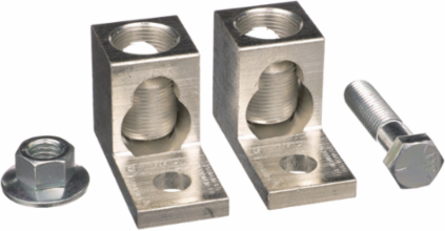

Square D AL2500RK PowerPacT R Circuit Breaker Lug Kit, 2500A, 1/0 AWG to 750 kcmil, Aluminum, Qty 2
- MPN: AL2500RK
- UPC: 785901441304
- PPN: SCH-AL2500RK
CAD
$278.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT R circuit breakers. These aluminum lugs are rated for 2500A. The lugs accept 1/0 AWG to 750kcmil aluminum and copper conductors. These lugs comply with UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 2500-2500 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Location Of Connection
- downstream, upstream
- Tightening Torque
- 68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil), 68-68 N.m 50-150 mm² (AWG 1/0...350 kcmil)
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2542
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Mode
- unit mount
- Product Or Component Type
- mechanical lug
- Returnability
- Yes
- Accessory / Separate Part Category
- connection accessory
- Package Weight(Lbs)
- 344.73 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Range Of ProductPowerPact R, Compact NS1600b...3200
Certificate AgencyCSA, UL
Local Publishable Date2026-04-10
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 1/0...750 kcmil aluminium/copper
Materialaluminium
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 2
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- PowerPact R, Compact NS1600b...3200
Product Or Component Typemechanical lug
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
