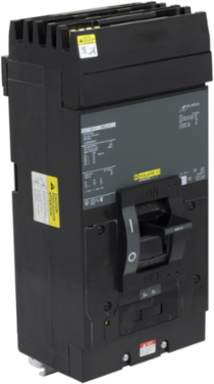

Square D LH26300AC 300A I-Line Circuit Breaker, 2 Pole, 25kA, 600VAC, 5.84 Inch Depth
- MPN: LH26300AC
- UPC: 785901358664
- PPN: SCH-LH26300AC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric has engineered the LH26300AC 300A I-Line Circuit Breaker to provide robust power distribution with exceptional reliability. This 2-pole circuit breaker is designed to handle a fault current rating of 25kA and is rated for 600VAC, making it suitable for demanding applications where high performance is critical. With a compact depth of 5.84 inches, it optimizes space without compromising on safety, ensuring that your electrical systems remain well-protected and efficient. Ideal for use in industrial settings, this molded case circuit breaker stands out for its efficiency and durability, essential for modern power management needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth5.84 in
Complementary Attributes
- Line Rated Current
- 300 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- 13-13 N.m 42-304 mm² (AWG 1...600 kcmil), 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
- Carbon Footprint Of The Distribution Phase [A4]
- 2.228383327123949, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 2.1496401101385745, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 739 kg CO2 eq., 739.3949682892573
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- Yes
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Electrical Connection
- lugs, loadI-Line connection, line
- Magnetic Hold Current
- 1500 A
- Mounting Mode
- I-Line
- Phase Connection
- AC
- Product Or Component Type
- circuit breaker
- Software Version
- v6.2.5-6
- Terminal Identifier
- AL400LA
- Trip Unit Technology
- thermal-magnetic
- Pep Code
- ENVPEP2206029EN
- Pep Verification Date
- 2028-06-11
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 11 in
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 7.36 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]12 kg CO2 eq., 11.67639778652332
Carbon Footprint Of The Manufacturing Phase [A1 To A3]50 kg CO2 eq., 49.671357924070975
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206029_V2
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Circuit Breaker ApplicationHACR rated
Energy Efficiency OptimizedFalse
Magnetic Tripping Current3000-3000 A
Number Of Poles2P
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint805 kg CO2 eq.
Wiring Configuration2-wire
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %58
Width Nominal6 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206029_V2
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2206029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint805.1207474371142
Environmental DisclosureENVPEP2206029EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep Verification Date2028-06-11
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
