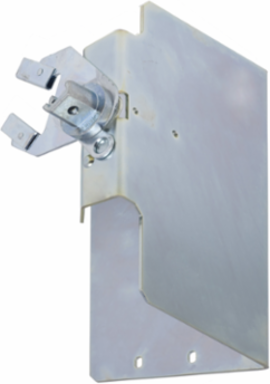

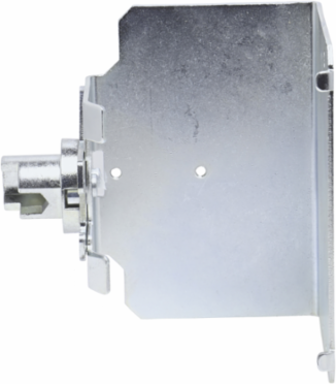

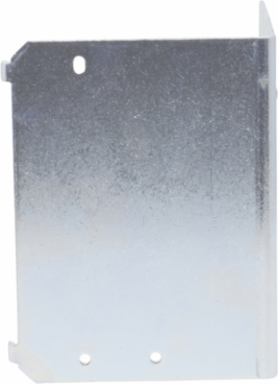

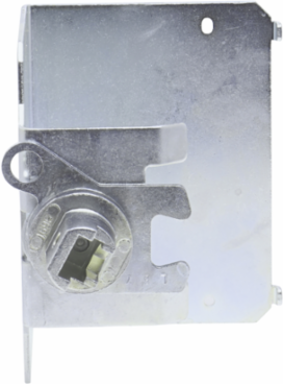

Square D 9421LB7 Circuit breaker accessory, PowerPacT B, operating mechanism, 125A, NEMA 1/3R/12, includes lockout

MPN: 9421LB7
UPC: 785901093480
PPN: SCH-9421LB7

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$304.15/ EA

Qty:

Loading add to cart quantity...

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPact B circuit breakers. Mechanism is used with 2 or 3 pole breakers with a frame size of 125A. Proper circuit breaker, operating handle and operating shaft must be ordered separately. Mechanism is UL Component Recognized and CSA certified.

Specifications

Range Of Product: 9421L

Product Or Component TypeOperating Mechanism

Offer Sustainability

Eu Rohs Directive: Under investigation
