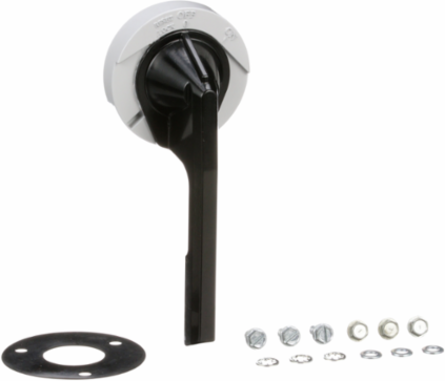

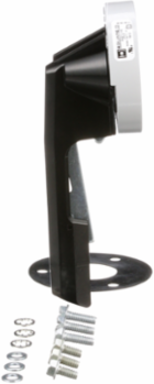

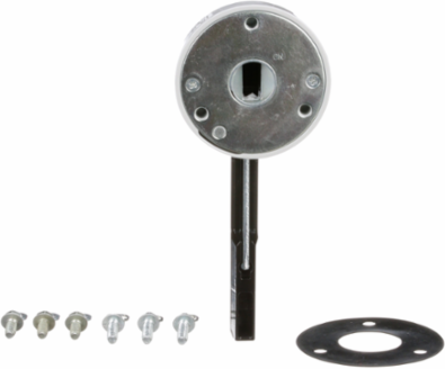

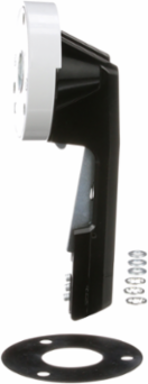

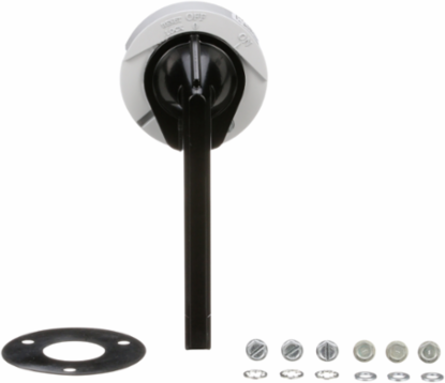

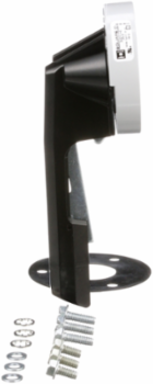

Square D 9421LH6 Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12

Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12
Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12
Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12
Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12
Circuit breaker accessory, PowerPacT B/H/J/L, handle assembly, rotary, 6 inch, 125A to 300A, NEMA 1/3R/12
  • MPN: 9421LH6
  • UPC: 785901830108
  • PPN: SCH-9421LH6

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$152.62/ EA

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J, Compact NSF circuit breakers with a 125A frame size. This handle assembly will also work with the operating mechanism for a 2 or 3 pole PowerPact H, and PowerPact J circuit breakers with a 250A frame size. This handle assembly has a 6 inch handle. This handle assembly is rated for NEMA Type 1, 3R and 12. This handle assembly is UL Component Recognized and CSA certified.

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Mercury Free
Yes
Eu Rohs Directive
Compliant with Exemptions
Halogen Content Performance
Halogen free plastic parts product
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Contractual warranty

Warranty
18 months

Complementary

Product Destination
9421LG7, LF1, LK1, LJ7 or LL1 operating mechanism
Product Compatibility
NEMA 1/3R/12 enclosure
Surface Finishpainted black
Length6 in

Specifications
