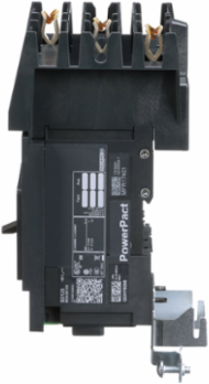

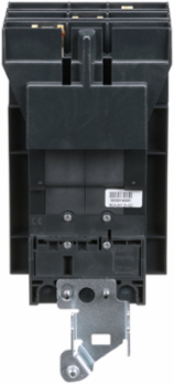

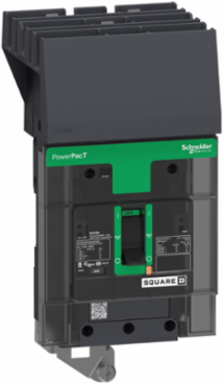

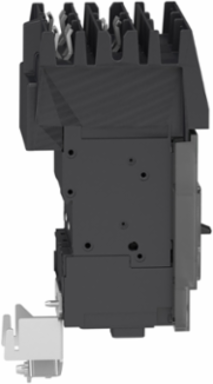

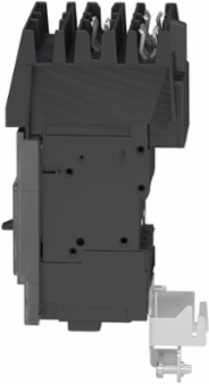

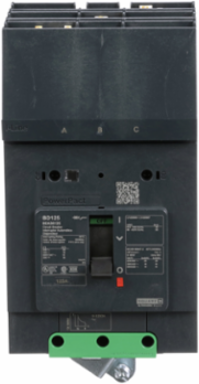

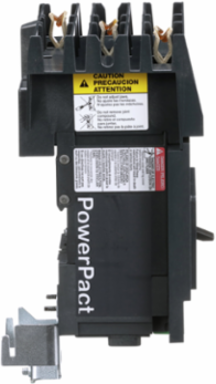

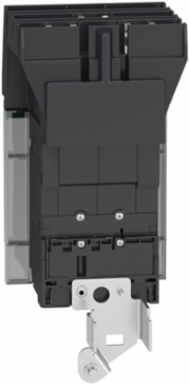

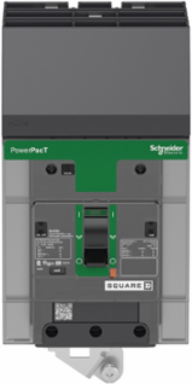

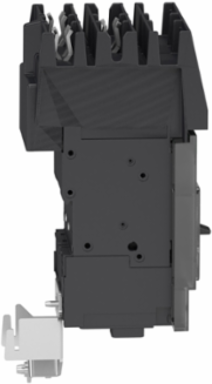

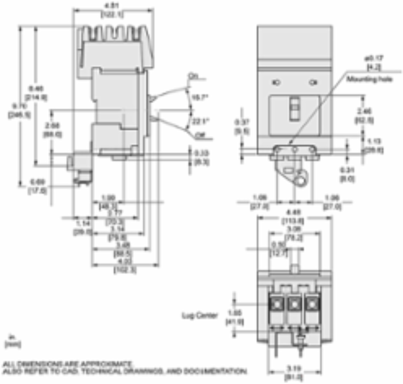

Square D BDA36125 PowerPact B Circuit Breaker, 125A, 3-Pole, 14kA, I-Line

MPN: BDA36125
PPN: SCH-BDA36125
UNSPSC: 39121601

$2881.86

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 125A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Features

Available in 1, 2, 3, and 4 pole for unit mounts
Available in 1, 2, and 3 pole for I-Line
Dual rated AC/DC with 3 levels of breaking capacity
A wide range of accessories, auxiliaries, and lug connections available
UL, CSA, NOM, IEC, CCC certified, and CE marked

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	89 mm

Weight	1345 g

Physical Attributes

Color	Gray RAL 7016)

Wire Stripping Length	20 mm

Complementary Attributes

Ics Rated Service Breaking Capacity	25 kA 220...240 V AC 50/60 Hz IEC 60947-214 kA 500...525 V AC 50/60 Hz IEC 60947-218 kA 380...415 V AC 50/60 Hz IEC 60947-2, 18 kA 440 V AC 50/60 Hz IEC 60947-2
Ue Rated Operational Voltage	525 V AC 50/60 Hz UL 489
Uimp Rated Impulse Withstand Voltage	8 kV IEC 60947-2

Line Rated Current	125-125 A
Ui Rated Insulation Voltage	800 V IEC 60947-2

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Tightening Torque	3.6-4.4 N.m 2.5-6 mm² (14 AWG...10 AWG), 5-6.2 N.m 10-70 mm² (8 AWG...2/0 AWG)
Carbon Footprint Of The Distribution Phase A4	0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.3807150366599, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	217 kg CO2 eq., 217.38591582952733
Local Publishable Date	2026-03-25
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1909
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Continuous Current Rating	80 %
Device Application	distribution
Electrical Connection	I-Line connection, linelugs, load
Energy Efficiency Optimized	False
Mechanical Durability	20000 cycles IEC 947-1 Annex K ed 5.2
Network Frequency	50/60 Hz
Number Of Slots	1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)1 alarm switch SD plug-in)
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Quantity Per Set	set of 1
Returnability	Yes
Suitability For Isolation	yes IEC 60947-2
Total Lifecycle Carbon Footprint	227 kg CO2 eq.
Utilisation Category	category A
Data Source	extrapolated product
Width Nominal	81 mm
Customs Code	8536200020
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL, IEC, CCC, EAC, CSA, NOM
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 2.2223624293247255
Carbon Footprint Of The Manufacturing Phase A1 To A3	7 kg CO2 eq., 6.9840065027260945
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	14 AWG...2/0 AWG aluminium/copper
Connection Pitch	27 mm
Control Type	toggle
Device Short Name	BD 125
Electrical Durability	10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Local Signalling	presence of auxiliary contacts flag green)
Mounting Mode	I-Line
Number Of Poles	3P
Phase Connection	ABC
Product Name	PowerPact B
Quality Labels	CE
Range	PowerPact
Software Version	v6.2.5-6
Sustainable Packaging	Yes
Trip Unit Technology	thermal-magnetic
Database Version	2024-01
Height Nominal	137 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free product
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	55

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-50-85 °C, -50-85 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	226.97299979823805
Environmental Disclosure	ENVPEP2311047EN
Halogen Content Performance	Halogen free product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Operating Altitude	< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Halogene Performance	Halogen free product
Mercury Free	Yes
9 Mm Pitches	9
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	front cover IP40 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2311047EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
