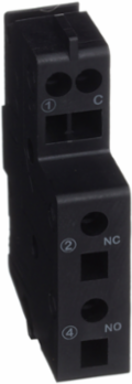

Schneider Electric LV426950 Compact NSXm Standard Auxiliary Contact, 1 Changeover Contact, 5A
- MPN: LV426950
- PPN: SCH-LV426950
CAD
$395.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
It is a single standard auxiliary contact that provides two remote information of the circuit breaker status. It is used on Compact NSXm and PowerPact B devices. The OF contact (open/closed) indicates the position of the circuit breaker main contacts. The SD contact (trip indication) indicates if the circuit breaker has tripped. There is one auxiliary contact model for OF and SD information, depending on where it is fitted in the device. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 2mA at 17 VDC. Utilization categories are AC12/AC13/DC12/DC13/DC14. Compact NSXm embeds 2 auxiliary contacts and their presence is visible on the front face through green flags. It complies with IEC 60947-5-1 standard.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Argentina, Brazil, China, Spain, France, United States |
|---|
Physical Attributes
| Wire Stripping Length | 8 mm for front connection |
|---|
Complementary Attributes
| Minimum Load | 2 mA 17 V DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Short Name | SD, OF |
| [Ie] Rated Operational Current | AC-15: 5 A at 48 V AC 50/60 HzDC-12: 2.5 A at 48 V DC 50/60 Hz, DC-14: 0.05 A at 110 V DCAC-12: 5 A at 24 V AC 50/60 Hz, AC-12: 5 A at 48 V AC 50/60 Hz, AC-12: 5 A at 110...127 V AC 50/60 Hz, AC-12: 5 A at 220/240 V AC 50/60 Hz, AC-12: 5 A at 380/440 V AC 50/60 Hz, AC-12: 5 A at 660/690 V AC 50/60 Hz, AC-15: 5 A at 24 V AC 50/60 Hz, AC-15: 4 A at 110...127 V AC 50/60 Hz, AC-15: 3 A at 220/240 V AC 50/60 Hz, AC-15: 2.5 A at 380/440 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 HzDC-12: 5 A at 24 V DC 50/60 HzDC-12: 0.6 A at 110 V DC 50/60 HzDC-12: 0.3 A at 250 V DC, DC-13: 2.5 A at 24 V DC, DC-13: 1.2 A at 48 V DC, DC-13: 0.35 A at 110 V DC, DC-13: 0.05 A at 250 V DCDC-14: 1 A at 24 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 0.03 A at 250 V DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.01914097934428922 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.08987521796683069 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | breaker status monitoring |
| Local Signalling | ON/OFF indication for open/closetrip indicator for relay trip indicator |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | ComPact |
| Returnability | Yes |
| Software Version | v6.2.2 |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Pep Code | ENVPEP2411004EN |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| [Ith] Conventional Free Air Thermal Current | 5 A |
| Package Weight(Lbs) | 25.000 g |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | ESXP1G003EN |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Fault Type | overload, short-circuit |
| Carbon Footprint Of The Distribution Phase [A4] | 0.004860294778781507, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.02266719577412608, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 1 kg CO2 eq., 1.389498292719039 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1902 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Auxiliary Connection Terminal | spring |
| Energy Efficiency Optimized | False |
| Mounting Mode | clip-on |
| Product Or Component Type | auxiliary contact |
| Range Of Product | ComPact NSXm |
| Signal Contacts Composition | 1 NO/NC |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.& 10& 10Ue = Rated operating voltage (V) - 690V AC & 250V DC& 10In = Rated current (A) - 5A Maximum& 10Np = Number of poles / number of protected poles- Not applicable as it is auxiliary contact& 10Icu: Rated breaking capacity (A)- Not applicable& 10Voltage range- 24V-690V AC & 24V-250V DC& 10Current type- AC & DC& 10Standards - IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 39 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509065 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 1.5260419805830663 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2411004EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2411004EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | auxiliary contact |
|---|
| Range Of Product | ComPact NSXm |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
