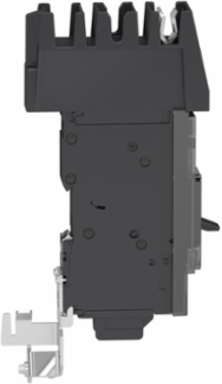

Schneider Electric BDA140605 PowerPact B Circuit Breaker, 60A, 1 Pole, 480Y/277VAC, 18kA, I-Line
- MPN: BDA140605
- PPN: SCH-BDA140605
CAD
$592.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 60A, 1 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with a C phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth89 mm
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Complementary Attributes
- Line Rated Current
- 60-60 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- 3.6-4.4 N.m 2.5-6 mm² (14 AWG...10 AWG), 5-6.2 N.m 10-70 mm² (8 AWG...2/0 AWG)
- Carbon Footprint Of The Distribution Phase [A4]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.40619039227283005, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 182 kg CO2 eq., 182.31143961422765
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 14 AWG...2/0 AWG aluminium/copper
- Connection Pitch
- 27 mm
- Control Type
- toggle
- Device Short Name
- BD 060
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Local Signalling
- presence of auxiliary contacts flag green)
- Mounting Mode
- I-Line
- Number Of Poles
- 1P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quantity Per Set
- set of 1
- Returnability
- No
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 193 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 55
- Width Nominal
- 27 mm
- [Ue] Rated Operational Voltage
- 240 V AC 50/60 Hz UL 489
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200020
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL, IEC, CCC, EAC, CSA, NOM
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.3710706959709897
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.451337792871334
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Continuous Current Rating80 %
Device Applicationdistribution
Electrical ConnectionI-Line connection, linelugs, load
Energy Efficiency OptimizedFalse
Mechanical Durability20000 cycles IEC 947-1 Annex K ed 5.2
Network Frequency50/60 Hz
Phase ConnectionC
Product NamePowerPact B
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2311047EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal137 mm
[Ics] Rated Service Breaking Capacity25 kA 220...240 V AC 50/60 Hz IEC 60947-2
[Ui] Rated Insulation Voltage800 V IEC 60947-2
Halogen-free StatusHalogen free product
Package Weight(Lbs)0.73 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Operating Altitude
- < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
- Halogene Performance
- Halogen free product
- China Rohs Regulation
- X
- Carbon Footprint
- 192.5400384953428
- Environmental Disclosure
- ENVPEP2311047EN
- Halogen Content Performance
- Halogen free product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-50-85 °C, -50-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 Mm Pitches3
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
