Bryant SP52WA Circuit Watch Surge Suppression Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, White
- MPN: SP52WA
- UPC: 781786139022
- PPN: HBL-SP52WA
- UNSPSC: 39121610
CAD
$193.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

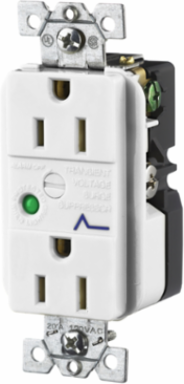

Circuit Watch Surge Suppression Straight Blade Receptacle, Industrial/Commercial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White
Features
- 15A 125V
- 2-Pole 3-Wire Grounding
- 5-15R
- White
- Commercial Specification Grade
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Amperage Rating
- 15 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Commercial Specification Grade
- Voltage Rating
- 125 V
- General Literature Asset 1 Display Text
- General Literature - tradeSELECT General Literature
- General Literature Asset 3 Display Text
- General Literature - Surge Protection Devices
- Display Size
- Standard
- Style
- Surge Protection Only
- Description - Invoice
- DUP TVSS RCPT, 15A 125V, 5-15R, WH
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- LED and Audible Alarm
- Series
- Specification Grade
- BOX SIZE
- 3.868x11.048x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786139022
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
ColorWhite
Width1.900 in
ApplicationDuplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
TypeDuplex Receptacle
Voltage Rating Description125 V
General Literature Asset 2 Display TextGeneral Literature - TRADESELECT RESIDENTIAL SELECTION GUIDE
ConnectivityTerminal Screws
Nema Rating5-15R
Class CodeNormal and Common Mode
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA44A420
Current Rating15 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
