Documentation & Downloads

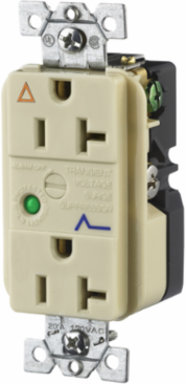

Bryant SP53IGIA Circuit Watch Surge Suppression Receptacle, 20A 125V, Isolated Ground, Ivory
- MPN: SP53IGIA
- UPC: 781786139183
- PPN: HBL-SP53IGIA
- UNSPSC: 39121610
CAD
$215.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Circuit Watch Surge Suppression Straight Blade Receptacle, Industrial/Commercial Grade, Isolated Ground, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Ivory
Features
- Isolated Ground
- 20A 125V
- 2- Pole 3-Wire Grounding
- 5-20R
- Ivory
- Commercial Specification Grade
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 20 A
- Amperage Rating
- 20 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Commercial Specification Grade
- Voltage Rating
- 125 V
- General Literature Asset 1 Display Text
- General Literature - Surge Protection Devices
- General Literature Asset 3 Display Text
- General Literature - Duplex Surge Receptacles
- Display Size
- Standard
- Style
- Isolated Ground
- Description - Invoice
- DUP SPD RCPT, IG, 20A 125V, 5-20R,IV
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- LED and Audible Alarm
- Series
- Specification Grade
- BOX SIZE
- 4.000x11.200x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786139183
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
ColorIvory
Width2.100 in
ApplicationIG Duplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
TypeDuplex Receptacle
Voltage Rating Description125 V
General Literature Asset 2 Display TextGeneral Literature - Power Disruption Solutions
ConnectivityTerminal Screws
Nema Rating5-20R
Class CodeNormal and Common Mode
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA44A420
Current Rating20 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
