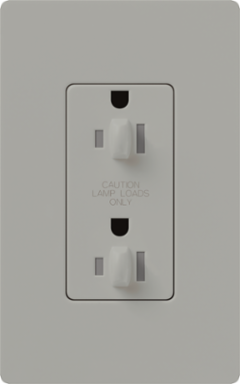

Lutron CAR-15-DDTR-GR-C Claro Dual Dimming Tamper Resistant Receptacle - 15A, 125V, Gray, Glossy Finish
- MPN: CAR-15-DDTR-GR-C
- UPC: 027557779012
- PPN: LUT-CAR-15-DDTR-GR-C
- UNSPSC: 39121406
CAD
$50.63
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Claro Dual Dimming Tamper Resistant Receptacle - 15A, 125V, Gray, Glossy Finish
Features
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
- Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
- Plug uses split-shell design for easy wiring and the ability to control cord exit direction
- Duplex for dimming both connected loads
- Projecting nubs prevent standard plugs from being used
- Requires replacement plug for dimming table and floor lamps
- Tamper resistant shutter mechanism
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 15 A |
|---|---|
| Connection | Screw Terminal |
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| NEMA Rating | 5-15R |
| Number of Wires | 3,4,5 |
| Type | Receptacle for dimming use |
| Wattage | 1875 W |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
| Temperature Rating | 32 to 104 F |
| Color | Gray |
| Size | 4.69 x 2.94 in (119 x 75 mm) |
| Application | Lighting Control |
|---|---|
| Decorative Color | Gray |
| Family Color | Gray |
| Number of Poles | 2 |
| Temperature Rating, Maximum | 104 F |
| Voltage Rating | 125 |
| Wire Size | 10 to 14 AWG |
| Material | Plastic/Metal |
| Mounting | Wallbox |
| Aesthetic Finish | Glossy |
| Finish | Gloss |
