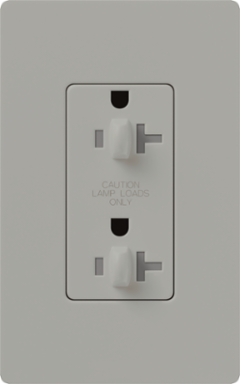

Lutron CAR-20-DDTR-GR-C Claro 20A Tamper Resistant Dimming Receptacle, Gloss Finish, 125V
- MPN: CAR-20-DDTR-GR-C
- UPC: 027557779432
- PPN: LUT-CAR-20-DDTR-GR-C
- UNSPSC: 39121406
CAD
$66.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Claro 20A Tamper Resistant Dimming Receptacle, Gloss Finish, 125V
Features
- Features on receptacle(s) for dimming use reject standard plugs
- Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
- Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
- Specification grade construction
- Back wire installation capable
- Receptacle face compatible with NEMA designer and Nova T opening wallplates
- Plug may be used with standard receptacles and with new receptacles designed for dimming use
- Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
- Plug uses split-shell design for easy wiring and the ability to control cord exit direction
- Duplex for dimming both connected loads
- Projecting nubs prevent standard plugs from being used
- Requires replacement plug for dimming table and floor lamps
- Tamper resistant shutter mechanism.
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 20 A
- Connection
- Screw terminal
- Environmental Conditions
- 0 to 90% humidity, non-condensing
- Number of Poles
- 2
- Temperature Rating, Maximum
- 104 F
- Voltage Rating
- 125
- Wire Size
- 10 to 12
- Insulation
- Plastic
- Material Quality
- Plastic/Metal
- Temperature Rating
- 32 to 104 F
- Color
- Gray
- Size
- 4.69 x 2.94;119 x 75 in;mm
ApplicationLighting Control
Decorative ColorGray
NEMA Rating5-20R
Number of Wires3,4,5
TypeReceptacle for dimming use
Wattage2500 W
Family ColorGray;Grey
MaterialPlastic/Metal
MountingWallbox
Aesthetic FinishGlossy
FinishGloss
