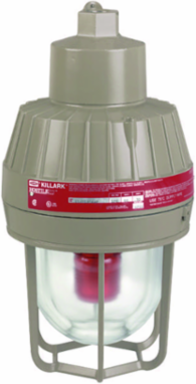

Killark ESXC120AA2G Explosion Proof Clear Strobe Light, 120VAC, 3/4 Inch Pendant, Xenon Lamp
Killark ESXC120AA2G Explosion Proof Clear Strobe Light, 120VAC, 3/4 Inch Pendant, Xenon Lamp
- MPN: ESXC120AA2G
- UPC: 783936028590
- PPN: HBL-ESXC120AA2G
- UNSPSC: 39111706
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Class I 120V, Clear Strobe, 3/4" Pendant with Guard
Features
- Electronic component temperature range –40?C to +55?C
- NEC temperature code, T6 (<85°C)
- Flash rate–85 flashes per minute
- Xenon type lamp
- Voltage and amperage: 12-74 VDC: Draws 1.25A avg. @ 12 VDC tapering to 0.2A avg. @ 74 VDC, .75A avg. @ 24 VDC
- 120 VAC (50/60 HZ): Draws 0.30A avg.
- 240 VAC (50/60 HZ): Draws 0.17A avg.
- Power supply output: 13 watts standard 11 watts for 12-74 VDC
- The ESX Series Explosion Proof Xenon Strobe is designed for warning and signaling applications. This fixture is made with a cast copper-free aluminum housing and are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Specifications
Specifications
- Country of Origin
- United States
- Hub Size
- 3/4"
- Mounting
- Pendant
- Voltage Rating
- 120 VAC
- Frequency Rating
- 50/60 Hz
- Mounting Type
- Pendant
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D201
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936028590
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Optic TypePolycarbonate Lens - Clear
Special FeaturesThe ESX Series Explosion Proof Xenon Strobe is designed for warning and signaling applications. This fixture is made with a cast copper-free aluminum housing and are powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments.
Finish TypePowder Epoxy Paint
Lamp TypeFlashing
ARRA CompliantContact Manufacturer
Description - InvoiceCL1 120V 3/4 PEND STRB W/GRD
Harmonization Code9405416000
MSDS FlagNo
Light SourceXenon
SeriesESX Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Total Units1 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
