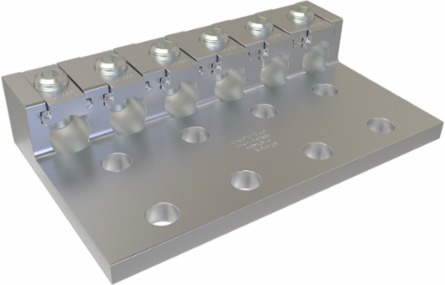

Ilsco USGL-350R86 Cleartrax Aluminum Lay-In Connector, Dual Rated, Conductor Range 350-6, 6 Ports, 8 Holes, UL
Ilsco USGL-350R86 Cleartrax Aluminum Lay-In Connector, Dual Rated, Conductor Range 350-6, 6 Ports, 8 Holes, UL
- MPN: USGL-350R86
- UPC: 0783669003048
- PPN: ILC-USGL-350R86
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$412.46/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.625
- Drive Size Main
- 5/16
- Height BX (IN)
- 6
- Mounting Hole Diameter (IN)
- 0.563
- Mounting Hole Spacing (IN)
- 1.75
- Tang Length (IN)
- 3.313
- Tang Thickness (IN)
- 0.438
- Tang Width (IN)
- 7.75
- Weight BX (LB)
- 13.0183
Dimension G (mm)15.875
Drive Type MainInternal Hex
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (mm)14.3002
Mounting Hole Spacing (mm)44.45
Tang Length (mm)84.1502
Tang Thickness (mm)11.1252
Tang Width (mm)196.85
Width BX (IN)10.75
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 8
- Number of Ports / Wireways
- 6
Contains DE-OX®No
Number of Conductors6
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishClear
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 350 kcmil - 6 Str
Conductor Range CU Stranded (Primary, run, main, line)350 kcmil - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900304
Carton Quantity DescriptionSTD PACK QTY 4
NEMA CodeS-569-1
Specifications
- Height
- 1.563 in
- Weight
- 3.154 lbs
Length4.688 in
Width7.75 in
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
- Wire Binding Screw Size
- 5/8
Number of Wire Binding Screws per Port2
Wire Binding Torque350
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
