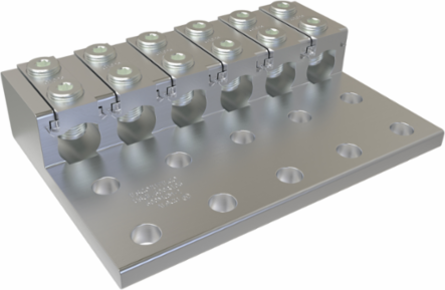

ILSCO USGL-600R106 Cleartrax Aluminum Lay-In Connector, Dual Rated, Conductor Range 600-2, 6 Ports, 10 Holes, UL
- MPN: USGL-600R106
- UPC: 783669003109
- PPN: ILC-USGL-600R106
CAD
$522.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Cleartrax Aluminum Lay-In Connector, Dual Rated, Conductor Range 600-2, 6 Ports, 10 Holes, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.857 in | 47.1678 mm
- Weight
- 3.756 lbs
Length5.97 in
Width8.686 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.625
- Drive Size Main
- 5/16
- Height BX (IN)
- 6.75
- Mounting Bolt/Stud Size (mm)
- 304.8
- Mounting Hole Diameter (mm)
- 14.3002
- Mounting Hole Spacing (mm)
- 44.45
- Tang Length (mm)
- 92.075
- Tang Thickness (mm)
- 12.7
- Tang Width (mm)
- 220.6244
- Width BX (IN)
- 13.5
Dimension G (mm)15.875
Drive Type MainInternal Hex
Height (mm)47.1678
Mounting Hole Diameter (IN)0.563
Mounting Hole Spacing (IN)1.75
Tang Length (IN)3.625
Tang Thickness (IN)0.5
Tang Width (IN)8.686
Weight BX (LB)30.6525
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 10
- Number of Ports / Wireways
- 6
Contains DE-OX®No
Number of Conductors6
Number of Poles1
Wire OrientationPerpendicular
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishClear
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 600 kcmil - 2 Str
Conductor Range CU Stranded (Primary, run, main, line)600 kcmil - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900310
Carton Quantity DescriptionSTD PACK QTY 8
NEMA CodeS-569-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
- Wire Binding Screw Size
- 3/4
Number of Wire Binding Screws per Port2
Wire Binding Torque450
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
