Documentation & Downloads
Weidmuller 0252611511 CLI C 1-3 GE/SW 3 MP
- MPN: 0252611511
- PPN: WDM-0252611511
CAD
$0.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

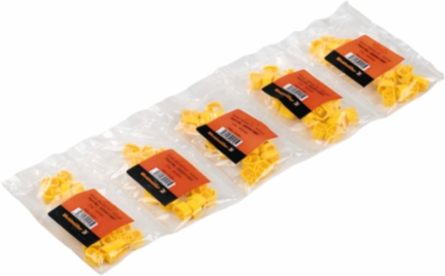

CableLine, Conductor and cable markers, 2.5 - 5 mm, 3 x 4.2 mm, yellow
Documentation & Downloads
Specifications
General Data
- Colour
- yellow
- Halogen
- Yes
- Material
- PVC, soft, without Cadmium
- Operating temperature range
- -30...80 °C
- Printed characters
- Numbers
- Printing method
- hot-embossing
- Type of printing
- Standard
- Version
- MultiPack
Colour of printingblack
Insulation cross-section, max.5 mm
Material colour according to resistance code4
Orientation of printhorizontal
Printing3
Recommended industriesProcess, Machinery
UL 94 flammability ratingV-0
Width4.2 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 4.2 mm
- Height
- 3 mm
- Depth
- 5 mm
- Net weight
- 0.06 g
Width (inches)0.165 inch
Height (inches)0.118 inch
Depth (inches)0.197 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 2.5 - 5 mm
- Conductor O.D., min.
- 2.5 mm
- Conductor cross-section, min.
- 1.5 mm²
Conductor O.D., max.5 mm
Conductor cross-section, max.4 mm²
HalogenYes
