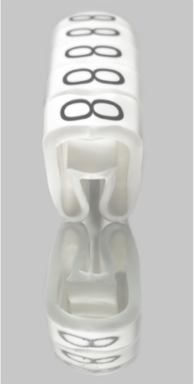

Weidmuller 0252611529 CLI C 1-3 GE/SW 9 MP
- MPN: 0252611529
- PPN: WDM-0252611529
CAD
$0.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CableLine, Conductor and cable markers, 2.5 - 5 mm, 3 x 4.2 mm, yellow
Documentation & Downloads
Specifications
General Data
| Colour | yellow |
|---|---|
| Halogen | Yes |
| Material | PVC, soft, without Cadmium |
| Operating temperature range | -30...80 °C |
| Printed characters | Numbers |
| Printing method | hot-embossing |
| Type of printing | Standard |

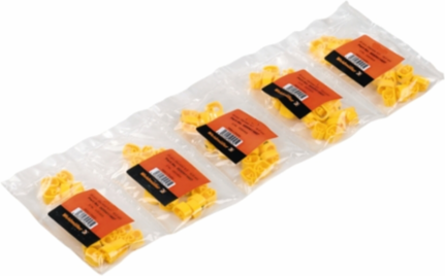

| Version | MultiPack |
| Colour of printing | black |
|---|---|
| Insulation cross-section, max. | 5 mm |
| Material colour according to resistance code | 4 |
| Orientation of print | horizontal |
| Printing | 9 |
| Recommended industries | Process, Machinery |
| UL 94 flammability rating | V-0 |
| Width | 4.2 mm |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 4.2 mm |
|---|---|
| Height | 3 mm |
| Depth | 5 mm |
| Net weight | 0.055 g |
| Width (inches) | 0.165 inch |
|---|---|
| Height (inches) | 0.118 inch |
| Depth (inches) | 0.197 inch |
Classifications
| ETIM 6.0 | EC001530 |
|---|---|
| eClass 9.0 | 27-40-04-01 |
| eClass 10.0 | 27-40-04-01 |
| ETIM 7.0 | EC001530 |
|---|---|
| eClass 9.1 | 27-40-04-01 |
| UNSPSC | 44-12-17-08 |
Conductor And Cable Markers
| Conductor O.D. | 2.5 - 5 mm |
|---|---|
| Conductor O.D., min. | 2.5 mm |
| Conductor cross-section, min. | 1.5 mm² |
| Conductor O.D., max. | 5 mm |
|---|---|
| Conductor cross-section, max. | 4 mm² |
| Halogen | Yes |
