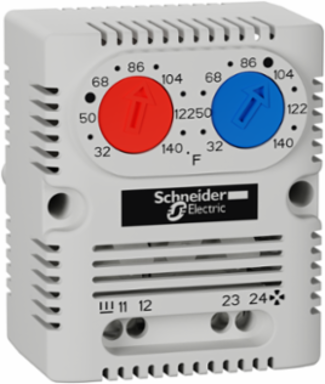

Schneider Electric NSYCCOTHDF ClimaSys Double Thermostat 250V, 0-60 C, 1 NO/NC, IP20

MPN: NSYCCOTHDF
PPN: SCH-NSYCCOTHDF

$110.92

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric NSYCCOTHDF ClimaSys Double Thermostat is engineered to provide efficient temperature regulation within electrical enclosures. Operating at 250V and capable of measuring temperatures from 0 to 60 C, this thermostat features a unique configuration with one normally open and one normally closed contact to enhance control options. Designed with an IP20 rating, it is suitable for indoor applications, ensuring that your enclosure maintains optimal climate conditions for sensitive equipment. This reliable thermostat is an essential component for those looking to improve environmental management in their electrical installations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, United States

Physical Attributes

Color	Light gray

Complementary Attributes

Maximum Switching Capacity	2 A 120...250 V AC inductive 0.6, 10 A 250 V AC resistive15 A 120 V AC resistive30 W DC

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Hysteresis	7 K +/- 0.4K, 7 %
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	0627
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Contact Resistance	10 mOhm
Electrical Connection	4 terminals 2.5 mm²
Flame Retardance	self-extinguishing conforming to UL94 (material V0)
Material	PC
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	double thermostat
Returnability	Yes
Service Life In Cycles	100000 cycles
Temperature Setting Range	0-60 °C
Pep Code	ENVPEP2103012EN
Width Nominal	external: 56 mm
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18
Other Technical Guide Name	CPTG001_EN

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Mounting Location	on mounting plate, 35 mm DIN rail, Spacial upright, cross rails
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Type And Composition	1 NO/NC
Energy Efficiency Optimized	False
Information Displayed	temperature in °F
Mounting Mode	clipped
Product Name	ClimaSys CC
Range	ClimaSys
Sensor Type	bimetal
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal	external: 68 mm
Certificate Agency	UL
Package Weight(Lbs)	104.000 g
Take-back	No
Customs Code	9032100060

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2103012EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation	-20-80 °C, -20-80 °C
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2103012EN
