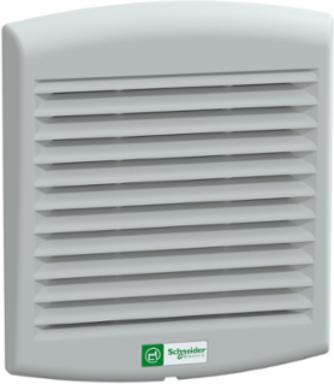

Schneider Electric NSYCAG125LPF Outlet Grille 125 x 125 mm with Filter, IP54 Protection
- MPN: NSYCAG125LPF
- PPN: SCH-NSYCAG125LPF
CAD
$66.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Prisma P outlet grille plastic. 125 x 125mm cut-out. External is 170 x 150 mm. Thermal management accessory. Compatible with ClimaSys CV fan. Fixing mode by screws or clipped. Injected thermoplastic (ASA PC). Grey RAL 7035 external part. 1 x G2 M1 synthetic standard filter incld. IP54 Protection.
Features
- Engineered specifically for the ClimaSys CV fan ecosystem, this outlet grille requires a standard 125 times 125 mm cutout, providing a perfect drop-in fit for Schneider Electric universal enclosures. It acts as a seamless exhaust path when paired with an intake fan, ensuring balanced, continuous airflow that eliminates localized hot spots.
- Featuring an IP54 ingress protection rating, this grille safeguards your sensitive internal electronics from harmful airborne dust particles and splashing water from any direction. It ensures reliable, uninterrupted operation of your PLC and automation controls in demanding, gritty industrial environments.
- Equipped with an premium G2 M1 synthetic standard filter mat housed in a secure support frame, the assembly captures fine particulates before they can settle on hot components. The M1 flame-retardant rating delivers critical fire-safety compliance, preventing the filter media from acting as an ignition source during unexpected thermal events.
- Molded from premium, high-impact injected thermoplastic (ASA PC), the external structure is highly resilient against physical impacts, chemical exposure, and thermal cycling. It maintains its structural integrity and neat RAL 7035 gray aesthetic over a long operational lifespan on the factory floor without cracking or degrading.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
Physical Attributes
| Color | external part Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 support frame, 1 external part, 1 G2 M1 synthetic standard filter |
| Carbon Footprint Of The Distribution Phase [A4] | 0.4359989771778507, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0648780489098774, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Service Catalog Item | Finished good |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Material | injected thermoplastic (ASA PC) |
| Product Name | ClimaSys CA |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; High voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 8 |
| Width Nominal | external: 150 mm |
| Accessory / Separate Part Category | thermal management accessory |
| Cut-out Dimensions | 125 x 125 mm |
| Package Weight(Lbs) | 220.000 g |
| Take-back | No |
| Customs Code | 3926909989 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Fixing Mode | clipped, by screws |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.40320702652180174 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 1.2407319723340138 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | outlet grille |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2012014EN |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | external: 170 mm |
| Certificate Agency | CSA |
| Accessory / Separate Part Destination | ClimaSys ventilation system |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | Yes |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | CPTG001_EN |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2012014EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2012014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 2.1448160249435437 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
General Attributes
| Product Or Component Type | outlet grille |
|---|
ETIM
| ETIM 8 | EC000331 |
|---|
| ETIM 9 | EC000331 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
