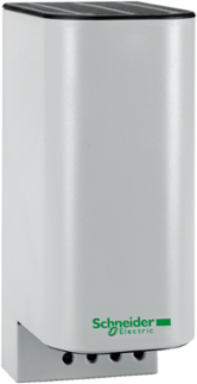

Schneider Electric NSYCR100WU2C ClimaSys PTC Heating Resistance 100W, 110-250V, 150 mm Height
- MPN: NSYCR100WU2C
- PPN: SCH-NSYCR100WU2C
CAD
$294.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ClimaSys PTC heating resistance insulate. 100W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage
- 110...250 V AC 50/60 Hz
- Power Range
- 100 W
- Product Name
- ClimaSys CR
Electrical Connection4 screw terminals 2.5 mm²
Product Or Component Typeresistance heater
RangeClimaSys
Complementary
- Product Certifications
- UL || VDE
- Ambient Air Temperature For Operation
- -40-70 °C
- Height
- external 150 mm
- Fixing Mode
- by clips
- Operating Position
- vertical
- Ip Degree Of Protection
- IP20
Electrical Insulation Classclass II
Widthexternal 60 mm
Mounting Support35 mm DIN rail
Materialbody extruded aluminium || cover plastic
Condition Of Useelectrical protection is needed || heaters must be installed with a thermal controller || air sealed enclosure
Depthexternal 90 mm
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2103011EN
- Eu Rohs Directive
- Compliant with Exemptions
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
