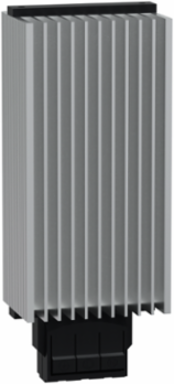

Schneider Electric NSYCR100WU2 ClimaSys PTC 100W Resistance Heater, 110-250V, IP20, 200mm Height
- MPN: NSYCR100WU2
- PPN: SCH-NSYCR100WU2
CAD
$133.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ClimaSys PTC heating resistance. 100W, 110-250V AC, 50/60 Hz. Vertical operating position. -40-70 °C ambient temp for operation. 35 mm DIN rail mounting support. Extruded aluminium body. IP20 Protection. Electrical protection needed, must be installed with a thermal controller.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 7.87 in
- Country of Origin
- China, Germany, Spain, France
Width3.35 in
Depth65 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Condition Of Use
- heaters must be installed with a thermal controller, air sealed enclosure, electrical protection is needed
- Carbon Footprint Of The Distribution Phase [A4]
- 1.1296337135971586, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.05385995118103079, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 1 770 kg CO2 eq., 1770.3879763778555
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- N
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1827
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Fixing Mode
- by clips
- Mounting Support
- 35 mm DIN rail
- Power Range
- 90 W
- Product Name
- ClimaSys CR
- Range
- ClimaSys
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 1 778 kg CO2 eq.
- Pep Code
- ENVPEP2103011EN
- Pep Verification Date
- 2025-06-09
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 89
- Height Useful
- 200 mm
- Width Real
- 85 mm
- Package Weight(Lbs)
- 570.000 g
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyUL, VDE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.49813431879808695
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 6.063177867676025
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Materialbody extruded aluminium
Operating Positionvertical
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeresistance heater
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe resistance heaters prevent the formation of condensation and guarantee the ideal temperature for the correct operation of the electronic components in the enclosure during 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh4380
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal200 mm
Width Nominal85 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Carbon Footprint
- 1778.1327822291078
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-09
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Silicon FreeYes
Environmental DisclosureENVPEP2103011EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2103011EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- resistance heater
ETIM
- ETIM 8
- EC000737
ETIM 9EC000737
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 110...250 V AC 50/60 Hz
