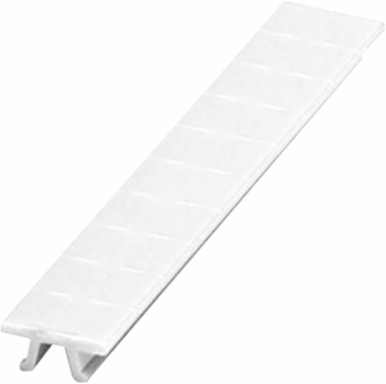

Schneider Electric NSYTRAB6L1N Marking Strip 6mm for Linergy TR Terminals, Set of 10
- MPN: NSYTRAB6L1N
- PPN: SCH-NSYTRAB6L1N
CAD
$1.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Marking accessory for Linergy TR products. It is 6 mm clip in marking strip for NSYTRV terminals blocks. It is made of L1, L2, L3, N, PE characters printed horizontally. It is compatible with all 4 mm² and 6.2 mm width terminal blocks. It is also compatible with 16 mm² terminal blocks with 2 marking elements for 1 terminal.
Documentation & Downloads
Specifications
Key Specifications
- Background Colour
- white
- Product Or Component Type
- marking strip
- Product Name
- Linergy TR
- Range
- Linergy
- Product Compatibility
- terminal block
Accessory / Separate Part Categorymarking accessory
MarkingN || L1 - L2 - L3 || PE
Size6 mm
Quantity Per Setset of 10
Device Short NameTRA
Complementary
- Type Of Marking
- symbolic
- Material
- polyamide 6/6
Colour Of Markingblack
Net Weight1.07 g
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304013EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
