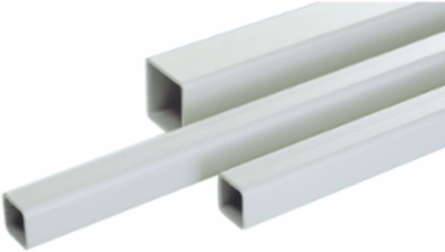

Schneider Electric NSYCMT5015 Square Tube 50 mm x 1.5 m, Extruded Steel, 6.5 kg/m Load Capacity
- MPN: NSYCMT5015
- PPN: SCH-NSYCMT5015
CAD
$462.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

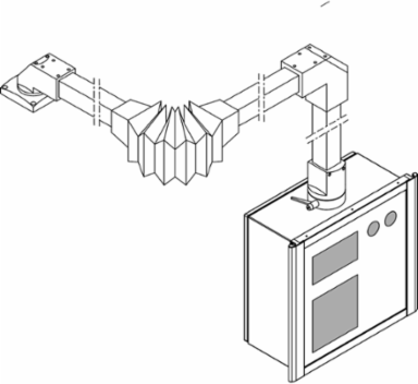

Designed for optimal functionality and compatibility with the PanelSeT S3CM HMI enclosures, these square tubes measure 50 mm in width and 1.5 meters in length, making them an essential component for effective cable management. Crafted from durable extruded steel with a sleek gray finish (RAL 7035), these tubes are not only robust but also designed for direct fixing onto supports and fittings, ensuring a secure installation. With a thickness of 4 mm and a linear load capacity of 6.5 kg/m, they provide reliable support for various applications, all while maintaining a net weight of 10.5 kg. Manufactured in Germany, these tubes come with an 18-month warranty, underscoring their quality and durability for multi-purpose use in diverse environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Width
- 1.97 in
Height59.06 in
Length59.06 in
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- 1 tube
- Fixing Mode
- direct fixing - on fixing supports and fittings
- Material
- extruded steel
- Permanent Permissible Load
- 0 kg
- Product Or Component Type
- tube
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Thickness
- 4-4 mm
- Warranty In Months
- 18
- Height Nominal
- 1500 mm
- Length Total
- 1500 mm
- Width Nominal
- 50 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportfitting, fixings on enclosure, fixing on support
Local Publishable Date2026-04-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Linear Load6.5 kg/m
Mounting Locationbetween fixing supports and fittings
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Categorycable management accessory
Pep CodeENVPEP1001004EN
Height Useful1500 mm
Length Useful1500 mm
Width Real50 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- tube
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
