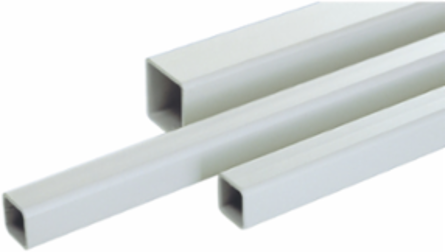

Schneider Electric NSYCMT5010 Square Tube 50 mm x 1000 mm, Extruded Steel, 7 kg
- MPN: NSYCMT5010
- PPN: SCH-NSYCMT5010
CAD
$321.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

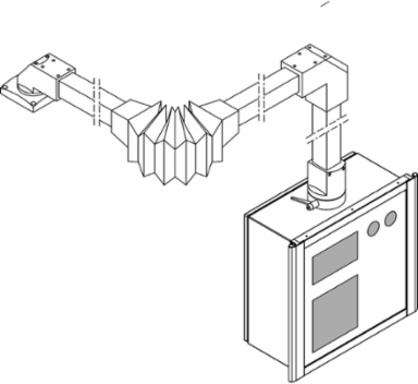

Spacial S3CM HMI Tubes square. W is 50 mm x L is 1000 mm. Multi-purpose cabling accessory. Mounting location between fixing supports and fittings. Permanent permissible load is 0 kg, linear load is 6.5 kg/m. Extruded Steel, Epoxy-polyester powder finish. Grey RAL 7035. 1 tube incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, Spain
- Width
- 1.97 in
Height39.37 in
Length39.37 in
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- 1 tube
- Fixing Mode
- direct fixing - on fixing supports and fittings
- Material
- extruded steel
- Permanent Permissible Load
- 0 kg
- Product Or Component Type
- tube
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Thickness
- 4-4 mm
- Warranty In Months
- 18
- Height Nominal
- 1000 mm
- Length Total
- 1000 mm
- Width Nominal
- 50 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportfixings on enclosure, fixing on support, fitting
Local Publishable Date2026-04-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Linear Load6.5 kg/m
Mounting Locationbetween fixing supports and fittings
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Categorycable management accessory
Pep CodeENVPEP1001004EN
Height Useful1000 mm
Length Useful1000 mm
Width Real50 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- tube
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
