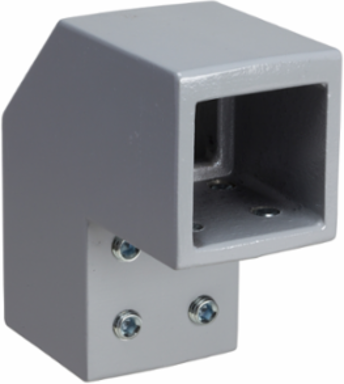

Schneider Electric NSYCMUTC50 Fixed Bracket for 50 mm Square Tube, 1.35 kg Load Capacity, Grey RAL 7040
- MPN: NSYCMUTC50
- PPN: SCH-NSYCMUTC50
CAD
$345.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial S3CM HMI Fixed bracket, square 50mm. H: 144 x 155 x 144 mm. Tube adaptor. Mounting between horizontal tube and a vertical tube . Permanent permissible load: 1.35 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7040. set of 1.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 5.67 in
- Country of Origin
- Brazil, Germany, Spain, United States
Width6.1 in
Depth144 mm
Physical Attributes
- Color
- Gray RAL 7040)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 fixing bracket
- Mounting Support
- option of passing cables through the inside, for 50 mm square tube
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Fixing Mode

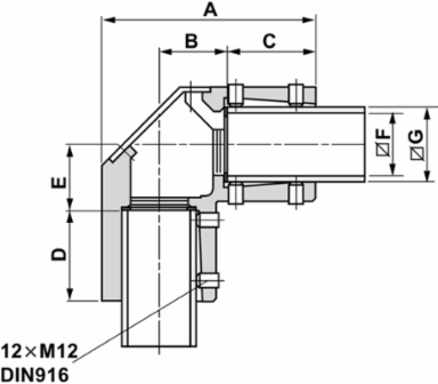

- by fixing element M12 - fixing the tube
- Mounting Location
- between horizontal tube and a vertical tube
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Height Nominal
- 144 mm
- Width Nominal
- 155 mm
- Accessory / Separate Part Category
- cable management accessory
- Package Weight(Lbs)
- 1.426 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialaluminium
Permanent Permissible Load1.35 kg
Product Or Component Typetube adaptor
RangePanelSeT
Surface Finishepoxy-polyester powder
Pep CodeENVPEP1001004EN
Height Useful144 mm
Width Real155 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- tube adaptor
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
