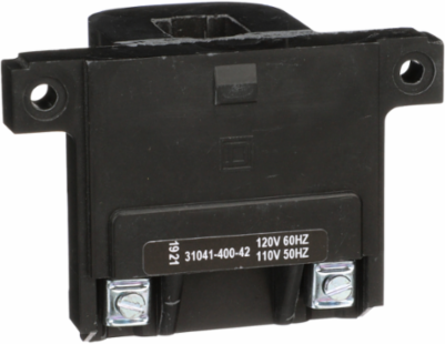

Square D 3104140042 NEMA Motor Starter, Type S, replacement coil, 110/120VAC 50/60Hz, NEMA Size 00, 0 and 1 starters and 8903SM lighting
- MPN: 3104140042
- UPC: 785901229124
- PPN: SCH-31041-400-42
CAD
$282.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The coil can be easily replaced in Type S contactors or starters. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 48.3 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Average Consumption | 27 VA, 26 VA |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Traceability | No |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Not Applicable/Out of Scope |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Or Component Type | coil |
| Sustainable Packaging | No |
| Width Nominal | 81.5 mm |
| Accessory / Separate Part Destination | class 8502 type SA (series A)/SB/SC contactorclass 8536 type SA (series A)/SB/SC starterclass 8903 type SM lighting contactor |
| Package Weight(Lbs) | 10.115 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Inrush Power In Va | 245 VA, 232 VA |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Scope Perimeter | At least in Europe |
| Rohs Eur In Scope | No |
| Rohs Eur Full Compliance Status | Not Applicable/Out of Scope |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Height Nominal | 54.7 mm |
| [Ue] Rated Operational Voltage | 120 V AC 60 Hz110 V AC 50 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504508000 |
Environment Attributes Main
| Nema Size | 1, 00, 0 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Packaging Made With Recycled Cardboard | Yes |
| Take Back | No |
|---|---|
| Eu Rohs Directive | Not Applicable/Out of Scope |
| Packaging Without Single Use Plastic | Yes |
General Attributes
| Product Or Component Type | coil |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
